Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly. (Refer to Body - "FRONT SEAT ASSEMBLY ")

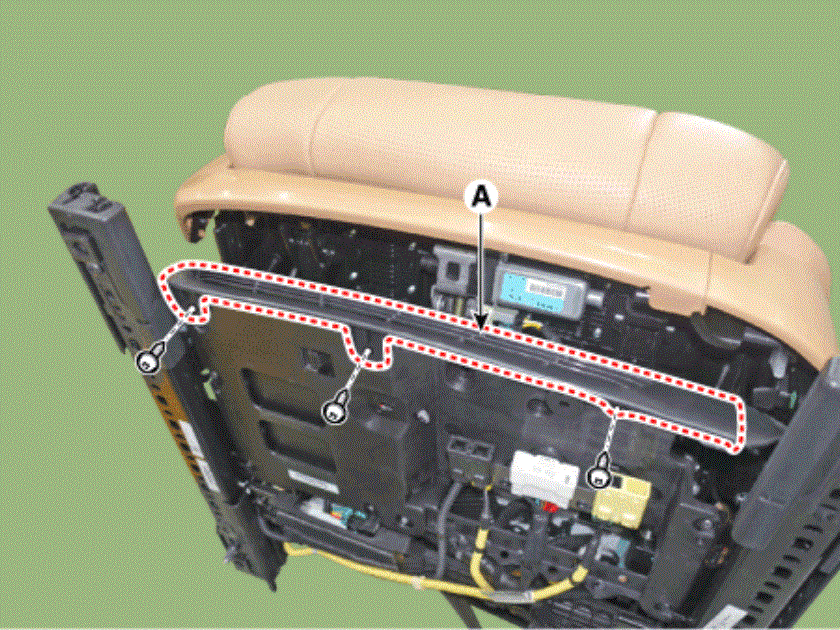

  3. Loosen the mounting screws and remove the front seat shield front cover (A).
    G15550120Courtesy of HYUNDAI MOTOR AMERICA

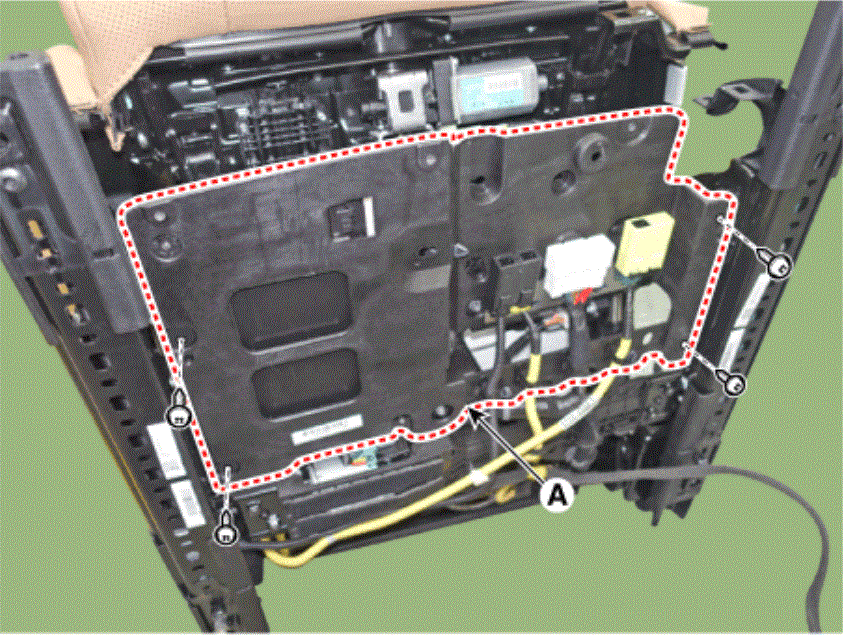

  4. Loosen the mounting screws and remove the front seat cushion protector cover (A).
    G15550121Courtesy of HYUNDAI MOTOR AMERICA

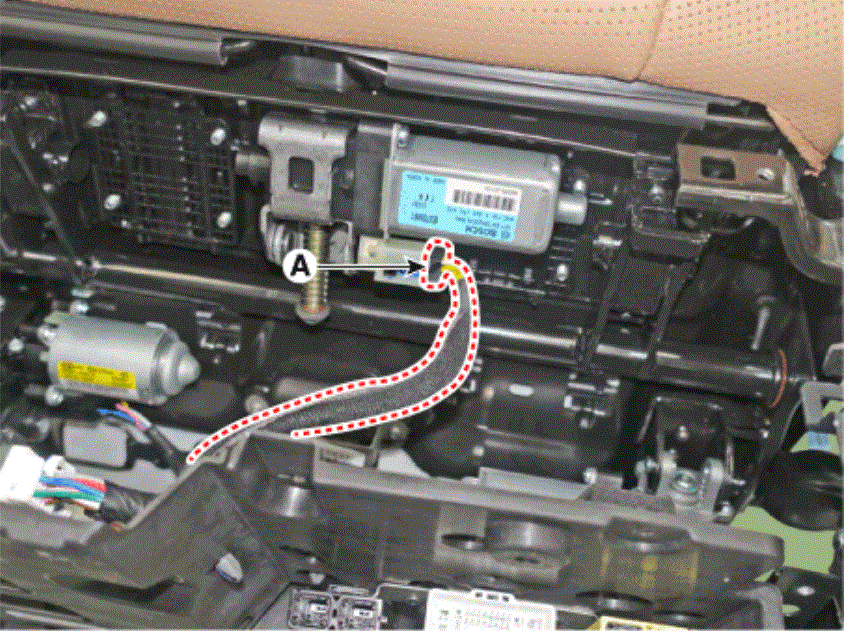

  5. Disconnect the IMS Tilt extension motor connector (A).
    G15550122Courtesy of HYUNDAI MOTOR AMERICA

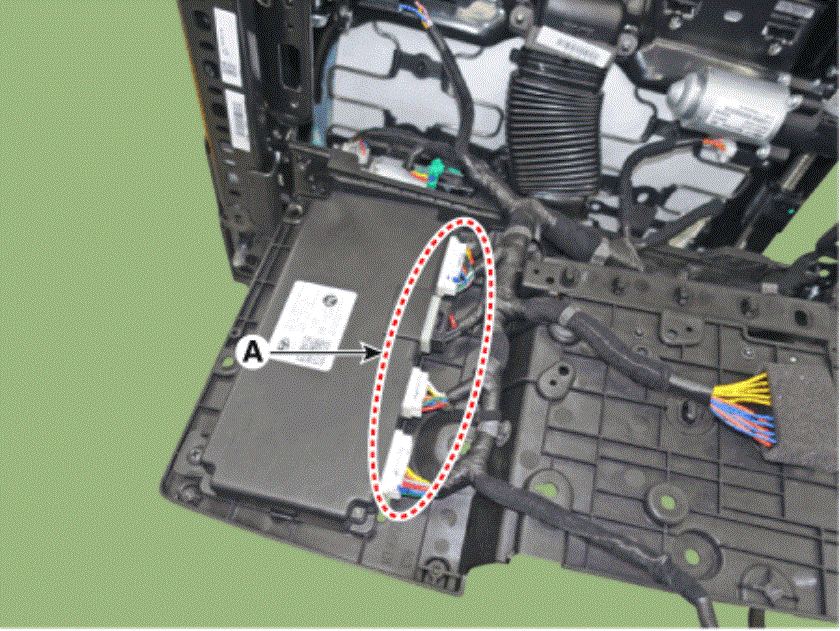

  6. Disconnect the memory seat unit connector (A).
    G15550123Courtesy of HYUNDAI MOTOR AMERICA
