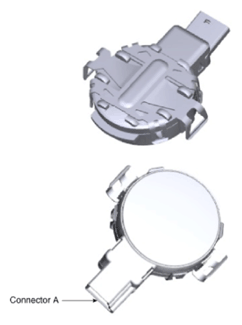

Components And Components Location
Courtesy of HYUNDAI MOTOR AMERICA
Connector A
Pin
Description
Courtesy of HYUNDAI MOTOR AMERICA
1
12V
2
Ground
3
LIN
