Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing cover.
(Refer to body - "GLOVE BOX HOUSING COVER ")
- Disconnect the BLE module connector and them remove the BLE module (A) after loosening mounting nuts.

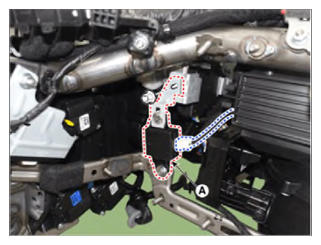

- Remove the IAU unit (A) after loosening mounting bolt.

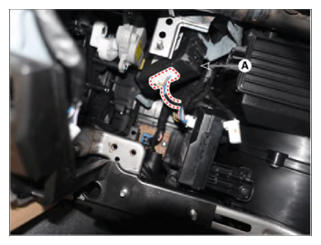

- Remove the IAU unit (A) after disconnecting IAU connector.
