Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

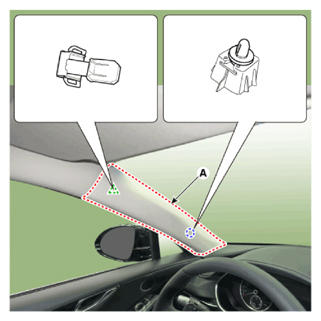

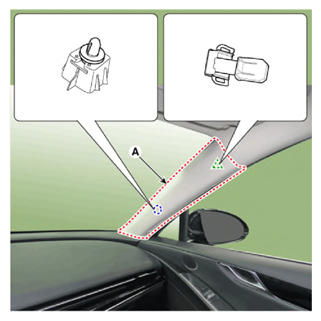

- Remove the front pillar trim

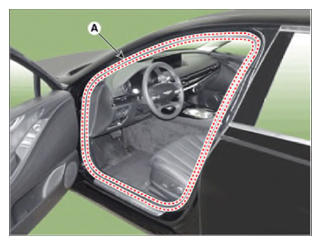

- Remove the mounting clips, remove both front door body side weatherstrip (A).

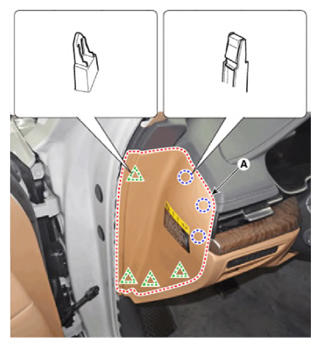

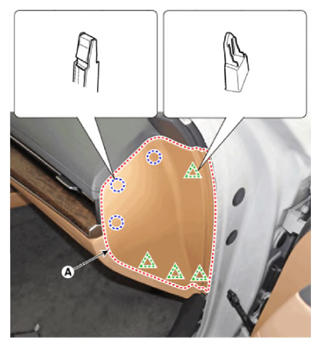

- Using a screwdriver or remover, remove the crash pad side cover (A).
[LH]
[RH]

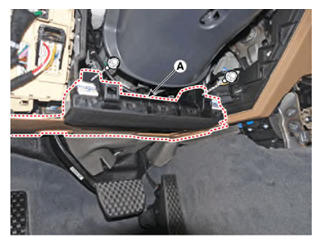

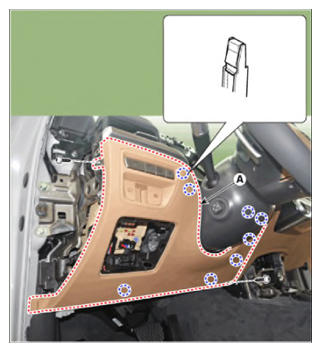

- After loosening the mounting screws, remove the crash pad lower panel (A).

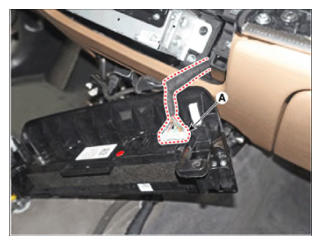

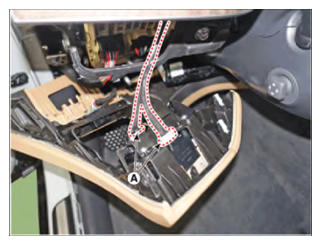

- Press the lock pin, separate the connectors (A).

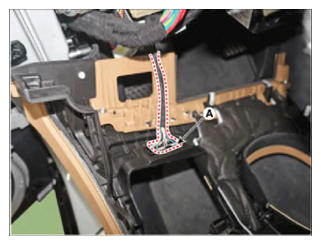

- Disconnect the diagnosis connector (A).

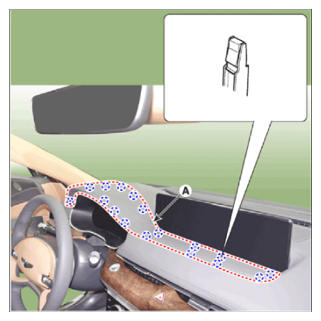

- Using a screwdriver or remover, remove the cluster fascia upper garnish (A).

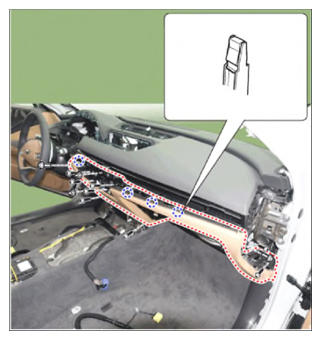

- Remove the crash pad garnish
[LH]

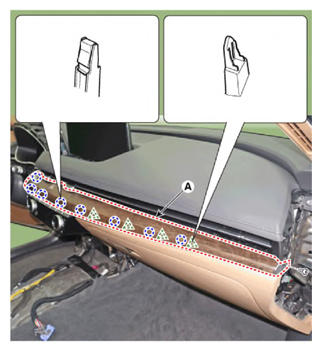

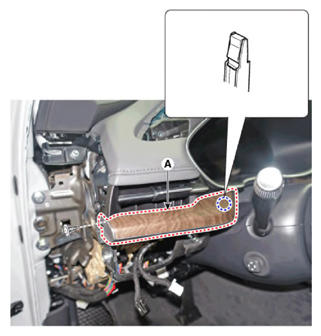

- Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).
- Press the lock pin to detach the mood lamp connector (A).
[RH]
- Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).
- Loosening the mounting screws, remove the steering column shroud upper panel (A).

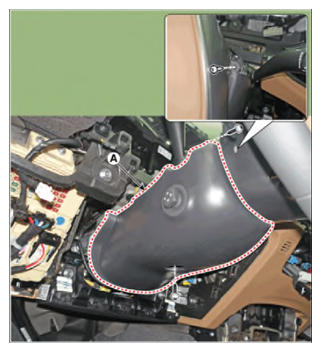

- Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).

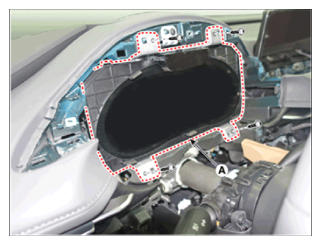

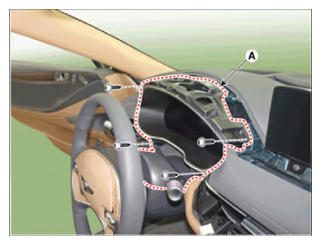

- Loosening the mounting screws, remove the instrument cluster (A).
- Press the lock pin, remove the instrument cluster connector (A).

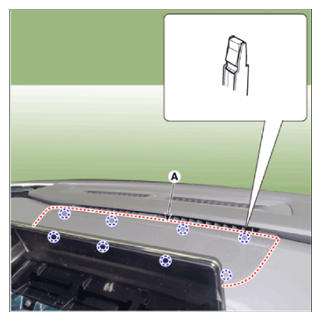

- Using the screwdriver or remover, remove the crash pas upper garnish (A).

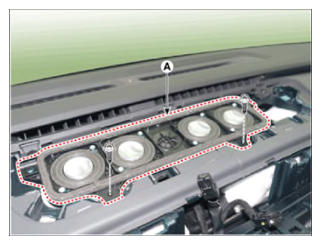

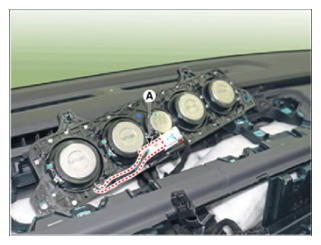

- Loosening the screws, remove the center speaker (A).
- Press the lock pin, detach the center speaker connector (A).

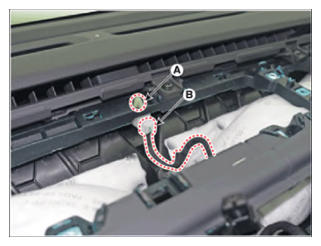

- Detach the crash pad upper garnish mounting clip (A), disconnect the security connector (B).

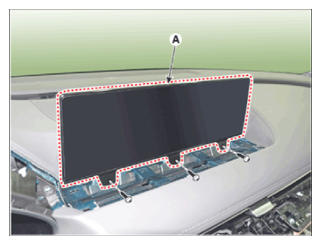

- Loosening the mounting screws, remove the front monitor (A).
- Press the lock pin, detach the front monitor connector (A).
- Remove the glove box housing cover
(Refer to Crash Pad - "GLOVE BOX HOUSING COVER ")
- Remove the Crash pad under cover
[LH]

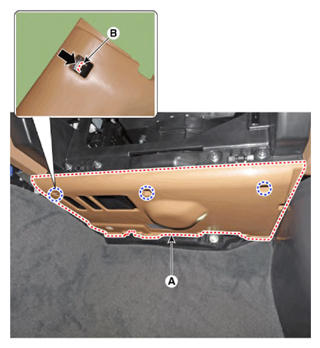

- After loosening the mounting bolts, remove the crash pad under cover (A).

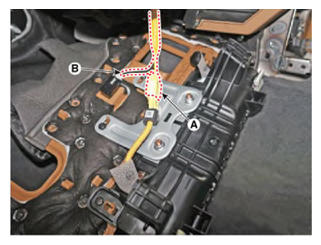

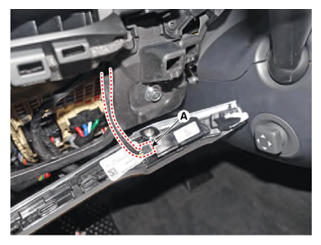

- Disconnect the knee air bag (KAB) connector (A), driver under lamp connector (B).
[RH]
- After loosening the mounting bolts, remove the crash pad under cover (A).
- Loosening the mounting screws, remove the AVN keyboard assembly (A).
- Press the lock pin, detach the AVN keyboard connector (A).

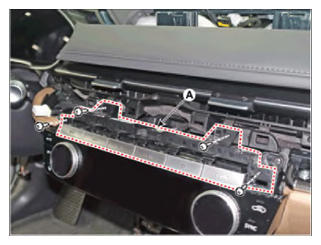

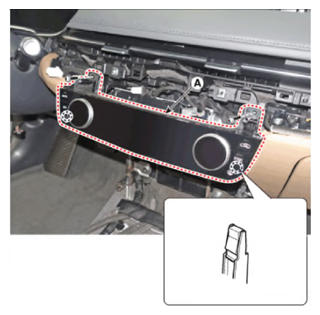

- Loosening the screws, remove the heater & air conditioning system control unit (A).

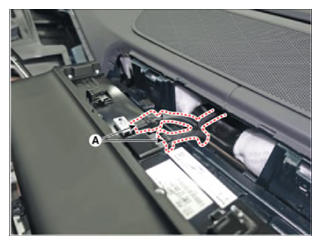

- Detach the heater & air conditioning system control unit connector (A).
- Loosening the mounting bolt, nut and screw, remove the crash pad center panel (A).

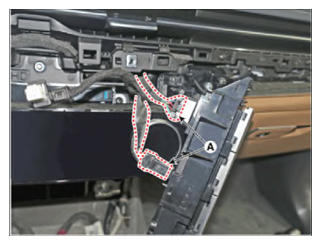

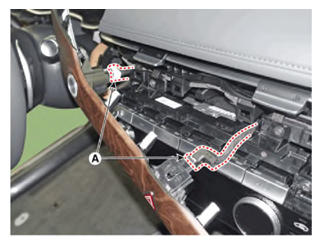

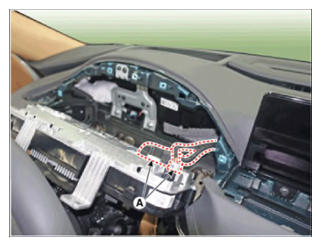

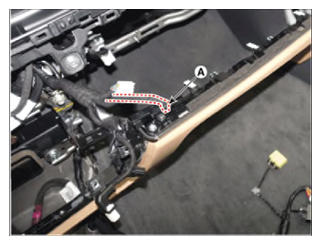

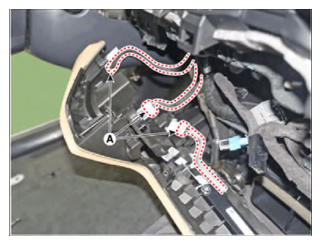

- Detach the various connectors (A).
- Detach the mood lamp connector (A).
- Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
- Remove the multifunction switch assembly.
(Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

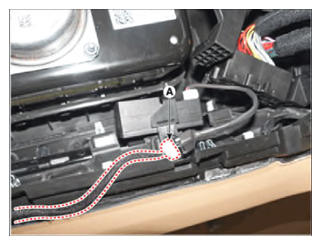

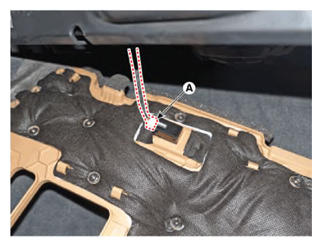

- Detach the PM sensor connector (A).

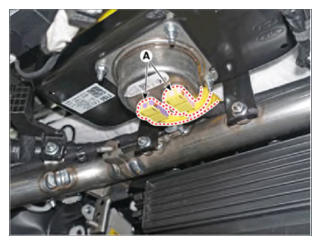

- Press the lock pin, detach the passenger airbag (PAB) connector (A).

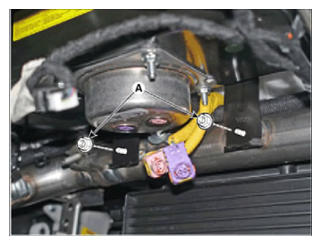

- Remove the passenger airbag mounting nuts (A).
Tightening torque: 16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

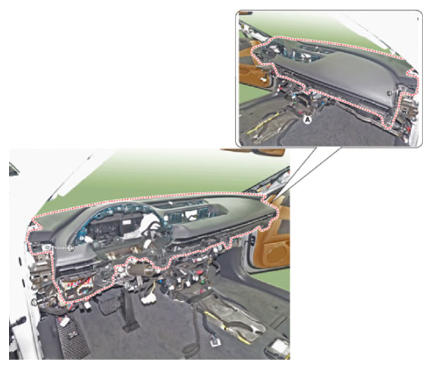

- Loosening the mounting bolt and nut, remove the main crash pad assembly (A).
Tightening torque: 16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)
- Install in the reverse order of removal.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
- Make sure that each of the assembly components operates properly.
