Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the rear seat.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  4. Remove the canter pillar upper trim.

    (Refer to Interior Trim - "CENTER PILLAR TRIM ")

  5. Remove the rear pillar trim.

    (Refer to Interior Trim - "REAR PILLAR TRIM ")

  6. Remove the sunvisor and retainer.

    (Refer to Roof Trim - "SUNVISOR ")

  7. Remove the assist handle.

    (Refer to Roof Trim - "ASSIST HANDLE ")

  8. Remove the overhead console lamp.

    (Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")

  9. Remove the room lamp.

    (Refer to Body Electrical System - "ROOM LAMP ")

  10. Disconnect the ECM mirror connector.

    (Refer to Body Electrical System - "ELECTRO CHROMIC INSIDE REAR VIEW MIRROR ")

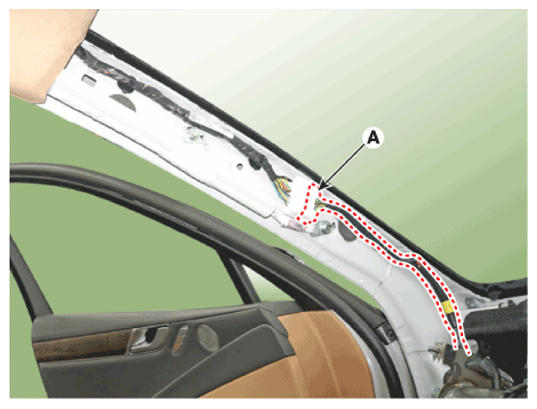

  11. Disconnect the roof trim main connectors (A) and the mounting clips in the front pillar.

    [Driver's]

    G15549671Courtesy of HYUNDAI MOTOR AMERICA

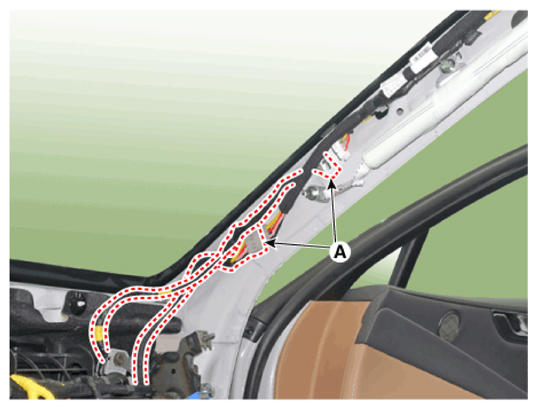

    [Passenger's]

    G15549672Courtesy of HYUNDAI MOTOR AMERICA
  12. Disconnect the connectors (A) and the mounting clips in the rear pillar.

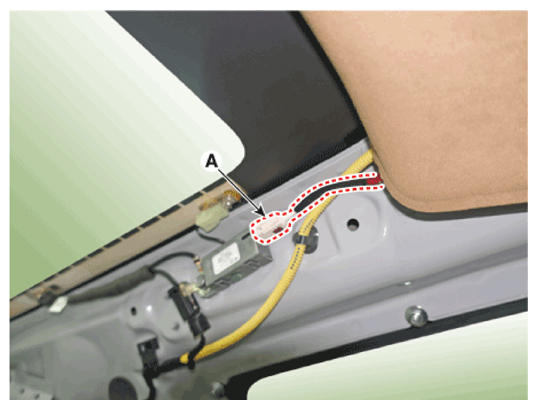

    [Driver's]

    G15549673Courtesy of HYUNDAI MOTOR AMERICA

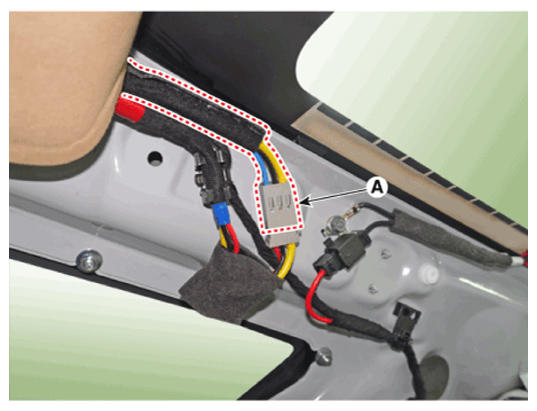

    [Passenger's]

    G15549674Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the rear window glass.

    (Refer to Body (Interior and Exterior) - "REAR WINDOW GLASS ")

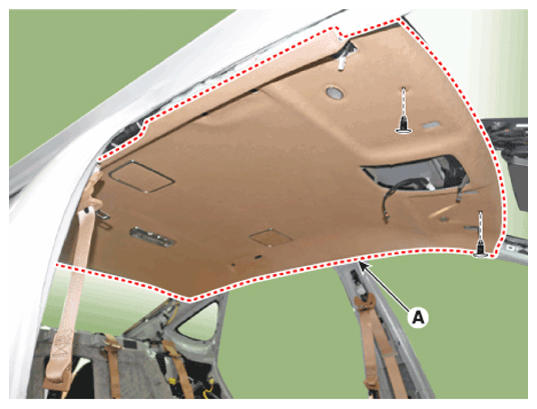

  14. Remove the roof trim mounting clips and remove the roof trim assembly (A) to the rear window glass.
    NOTE:
    • Take care not to crease the roof trim.
    G15549675Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove roof trim wiring harness from the roof trim (A).
    NOTE:
    • Take care not to damage the roof trim wiring harness (A) when removing.

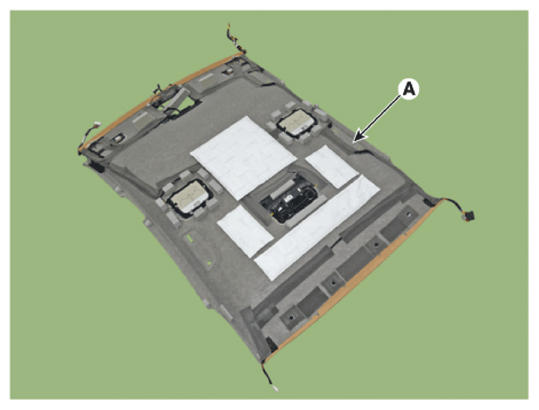

    [General Type]

    G15549676Courtesy of HYUNDAI MOTOR AMERICA

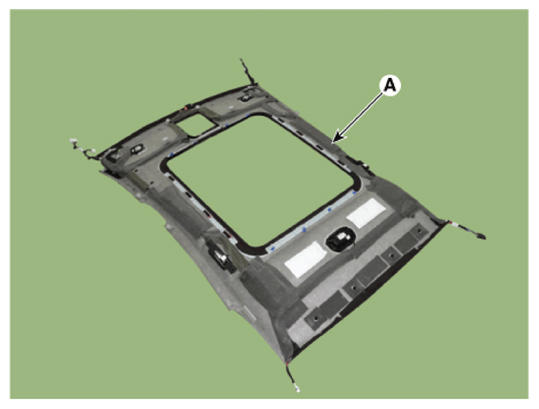

    [Sunroof Type]

    G15549677Courtesy of HYUNDAI MOTOR AMERICA

    Information

    1. When installing the roof trim wiring harness on the roof trim, apply the hot melt continuously by using the hot melt gun tool.
    2. Put anti-noise pad on roof trim to prevent the noise.
  16. Install in the reverse order of removal.

    Information

    • Make sure the connector is connected properly.
    • Replace any damaged clips.
