Repair Procedures: Replacement

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

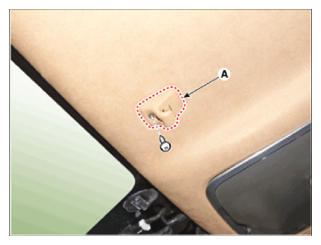

Using a screwdriver or remover, remove the sunvisor pivot cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

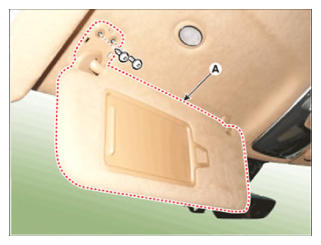

Loosen the mounting screws, remove the sunvisor (A).

Courtesy of HYUNDAI MOTOR AMERICA

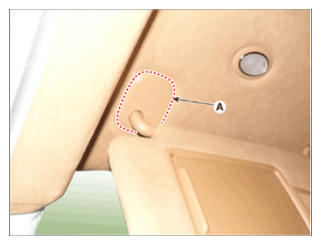

Loosen the mounting screw, remove the retainer (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
