Front Power Seat Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly. (Refer to Body - "FRONT SEAT ASSEMBLY ")

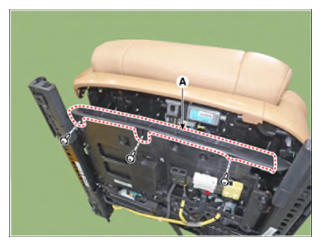

  3. Loosen the mounting screws and remove the front seat shield front cover (A).
    G15550130Courtesy of HYUNDAI MOTOR AMERICA

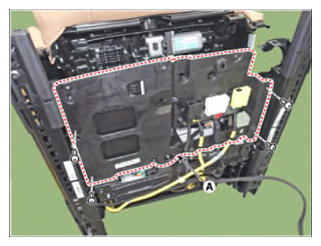

  4. Loosen the mounting screws and remove the front seat cushion protector cover (A).
    G15550131Courtesy of HYUNDAI MOTOR AMERICA

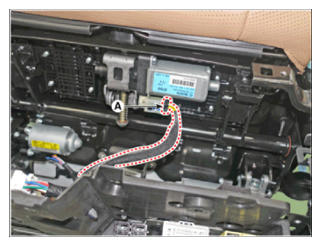

  5. Disconnect the IMS Tilt extension motor connector (A).
    G15550132Courtesy of HYUNDAI MOTOR AMERICA

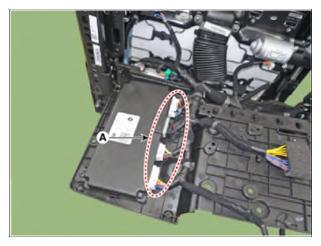

  6. Disconnect the front seat integrated unit connector (A).
    G15550133Courtesy of HYUNDAI MOTOR AMERICA
