Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
    CAUTION:
    • Wait at least 30 seconds after separating the cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

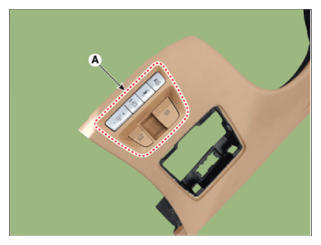

  3. Remove the crash pad lower switch (A) after loosening the screw.
    G15549208Courtesy of HYUNDAI MOTOR AMERICA

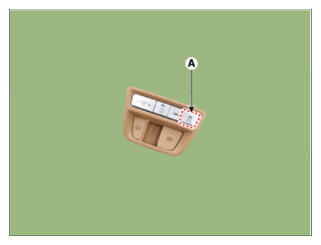

  4. Remove the VDC OFF switch (A) after loosening the screw.
    G15549209Courtesy of HYUNDAI MOTOR AMERICA
