Repair Procedures: Removal: 2WD

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

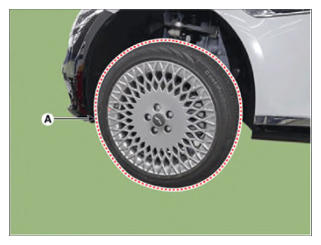

Remove the front wheel and tire (A) from front hub.

Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3-115.7 lb-ft)

NOTE:

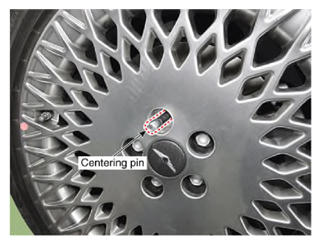

Safely remove the wheel and tire (A) using the centering pin included in the luggage tray.

Courtesy of HYUNDAI MOTOR AMERICA

Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the brake caliper.
(Refer to Brake System - "FRONT DISC BRAKE ")

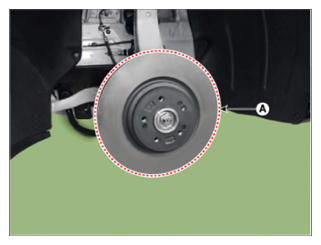

Loosen the screw and then remove the front brake disc (A).
Tightening torque:

4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

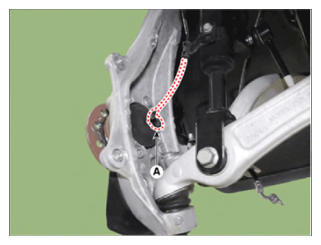

Disconnect the front wheel speed sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

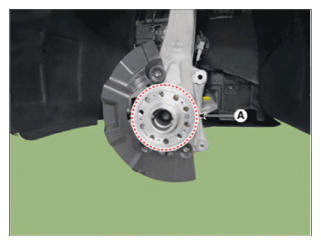

Loosen the mounting bolt from the knuckle and then remove the hub bearing assembly.
Tightening torque:

88.3 - 107.9 N.m (9.0-11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
