Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

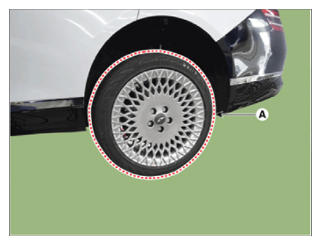

Remove the rear wheel and tire (A) from rear hub.

Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3-115.7 lb-ft)

NOTE:

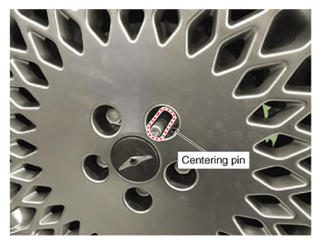

Safely remove the wheel and tire (A) using the centering pin included in the luggage tray.

Courtesy of HYUNDAI MOTOR AMERICA

Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

Courtesy of HYUNDAI MOTOR AMERICA

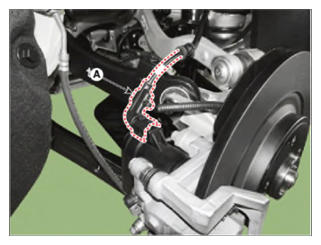

Disconnect the EPB actuator connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear wheel guard.
(Refer to Body - "REAR WHEEL GUARD ")

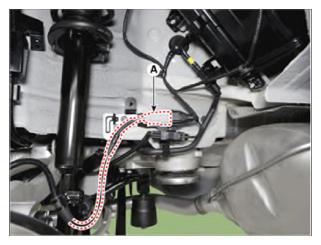

Disconnect the rear wheel speed sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

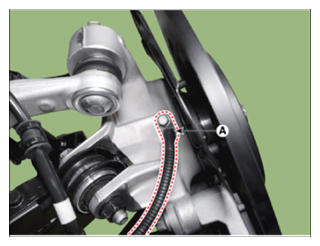

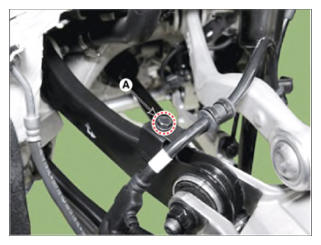

Loosen the bolt (A) and then remove the wiring bracket.
Tightening torque:

8.8-13.7 N.m (0.9-1.4 kgf.m, 6.5-10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

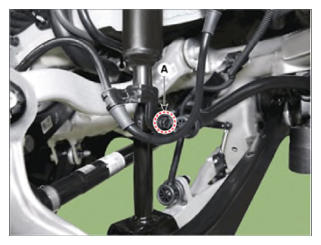

Loosen the bolt (A) and then remove the rear wheel speed sensor.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
