Repair Procedures: Installation

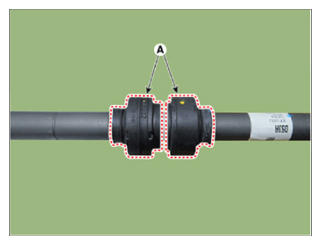

Install the dynamic damper (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing the dynamic damper, install it in set with the mounting part (A) of the shaft.

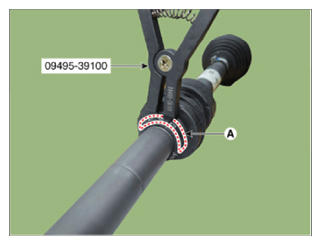

Install the dynamic damper band (A) using SST (09495-39100).

Courtesy of HYUNDAI MOTOR AMERICA
Install the transaxle side joint.
(Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")
Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
