Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

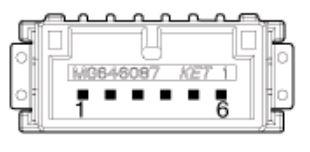

Connector
Courtesy of HYUNDAI MOTOR AMERICA
NO	Description
1	Ground (LED)
2	LED (Green)
3	LED (Amber)
4	-
5	Illumination (-)
6	Illumination (+)
