Repair Procedures: Reassembly

Install the insulator, strut bearing, coil spring and upper pad at the shock absorber.

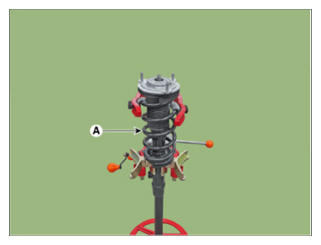

Using the spring compressor, compress the coil spring (A).

Do not compress the spring more than necessary.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

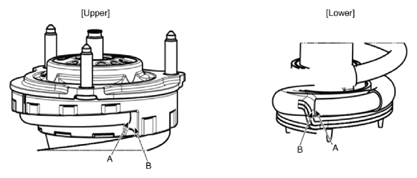

When assembling the coil spring, install it so that the gap between the upper/lower ends (A) and the pad stoppers (B) is within 3 mm.

Courtesy of HYUNDAI MOTOR AMERICA

Using the SST, install the self locking nut.

NOTE:

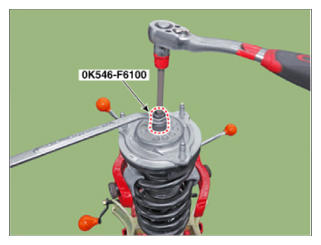

Using the SST (0K546-F6100), install the self locking nut.[ECS type]

Tightening torque:

107.8 - 117.7 N.m (11.0 - 12.0 kgf.m, 79.6 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

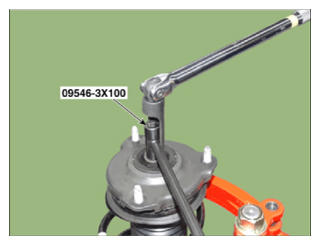

Using the SST (09546-3X100), install the self locking nut.[None ECS type]

Tightening torque:

53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
