Components And Components Location

Courtesy of HYUNDAI MOTOR AMERICA

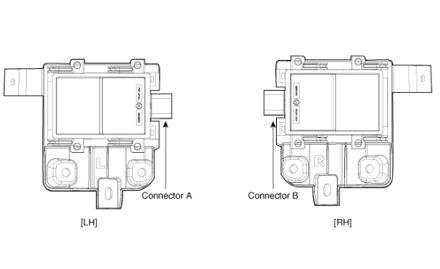

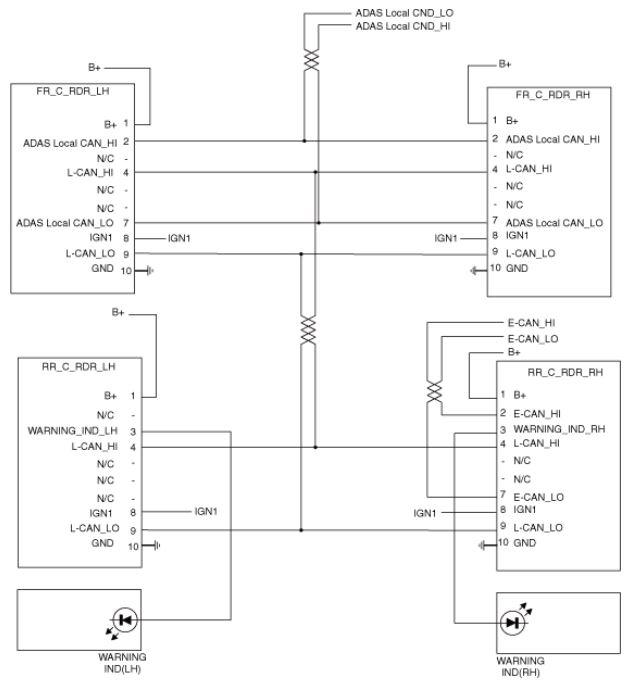

Connector	NO	Description (Connector A)	NO	Description (Connector D)
Courtesy of HYUNDAI MOTOR AMERICA	1	Barratry (+)	1	Battery (+)
	2		2	E-CAN High
	3	Warning Indicator [LH]	3	Warning Indicator [RH]
	4	L-CAN High	4	L-CAN High
	5	-	5	-
	6	-	6	-
	7	-	7	E-CAN Low
	8	IGN1	8	IGN1
	9	L-CAN Low	9	L-CAN Low
	10	Ground	10	Ground
	11	-	11	-
	12	-	12	-

Courtesy of HYUNDAI MOTOR AMERICA
