NFC Entry/Start up Authentication

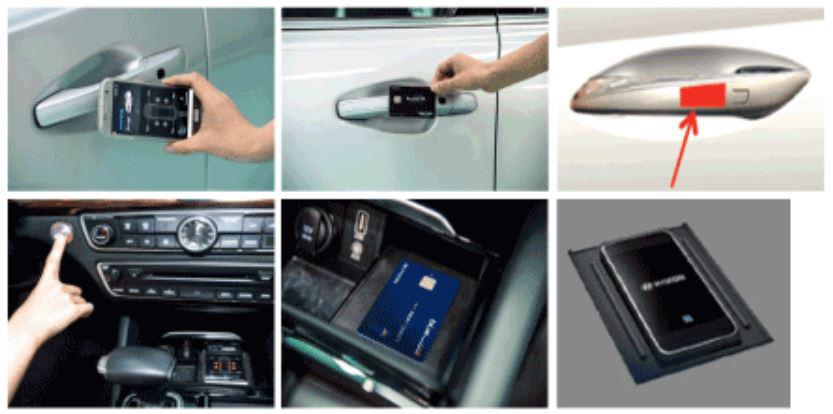

When you contact your digital key or NFC key card to the vehicle's door handle, it operates door lock or unlock after checking whether the user has access or not through NFC communication.
When you place the key on the wireless charger in the vehicle and press the engine button, the engine starts to work after the verification process is completed.
NFC antenna is mounted on the vehicle's outside handle for entry verification and ignition authentication antenna is embedded in the wireless charger.
NOTE:
- You should contact your smart phone key or NFC keycard on the exact spot of the outside handle where the NFC antenna is mounted on.
- NFC or Bluetooth function on the smart phone should be turned on.
- You should confirm the user's authority such as the expiration in case of the smart phone key.

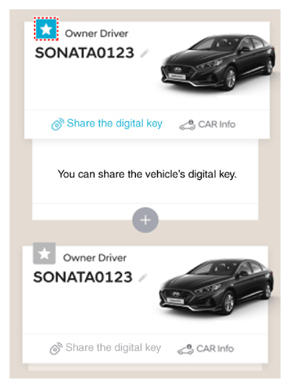

- Open the app and check whether the vehicle is registered as a main use vehicle.
