Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING COVER ")

  3. Disconnect the connector (A) and then remove the IBU after loosening mounting bolt and nuts.

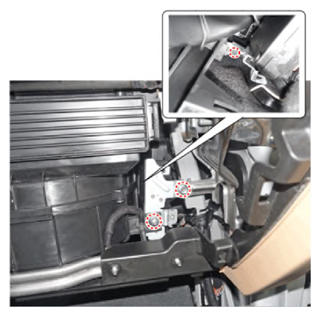

    G15554980Courtesy of HYUNDAI MOTOR AMERICA

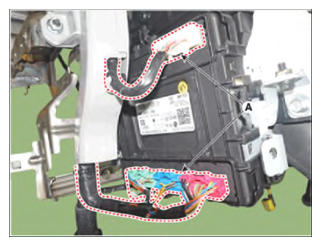

    G15554981Courtesy of HYUNDAI MOTOR AMERICA
