Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the floor console assembly
(Refer to floor console- "FLOOR CONSOLE ASSEMBLY ")
Remove the floor console upper cover
(Refer to floor console- "FLOOR CONSOLE ASSEMBLY ")

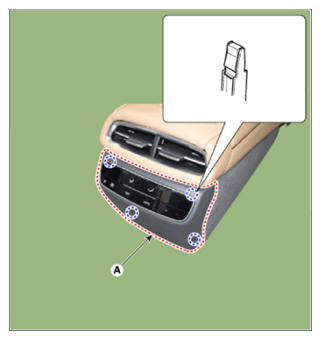

Using a screwdriver or remover, remove the rear console cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

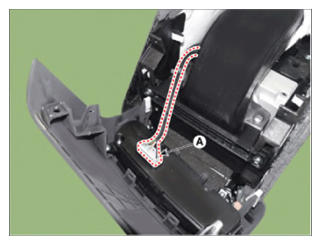

Detach the rear air conditioning controller connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

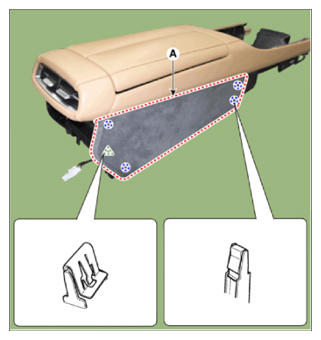

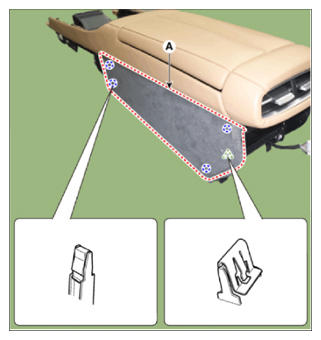

Using a screwdriver or remover, remove the rear floor console side cover (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

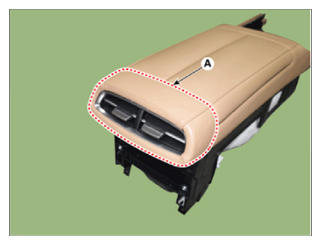

Loosening the screws, remove the rear air vent (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

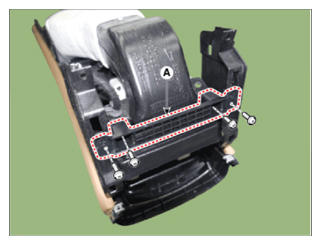

Loosening the screws, remove rear the air duct mounting bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

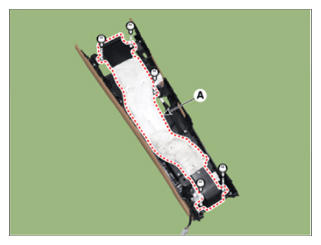

Loosening the screws, remove the rear air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

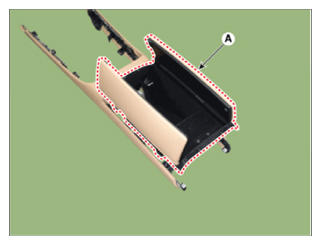

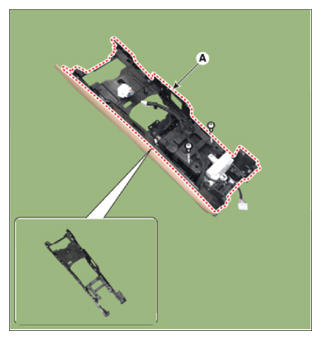

Loosening the screws, remove the floor console cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

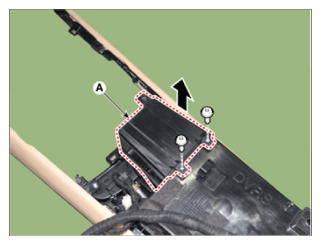

Loosen the mounting screws, remove the cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

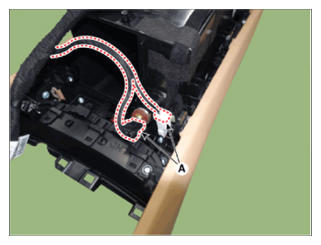

Detach the connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

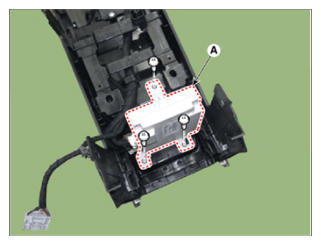

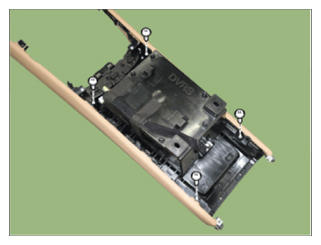

Loosening the screws, remove the DVRS unit (A).

Courtesy of HYUNDAI MOTOR AMERICA

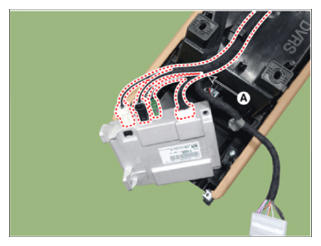

Detach the DVRS unit connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

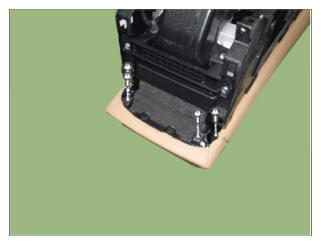

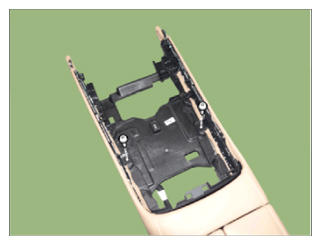

Loosening the screws, remove the console armrest assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
