Repair Procedures: Replacement
- Remove the center pillar lower trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")

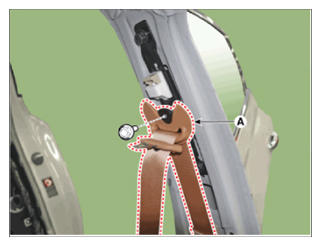

- Loosen the mounting bolt, remove the front seat belt upper anchor (A).
Tightening torque: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

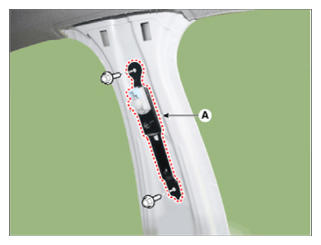

- Loosen the mounting bolt, remove the height adjust (A).
Tightening torque: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
