Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the luggage side trim.
(Refer to Body - "LUGGAGE SIDE TRIM ")

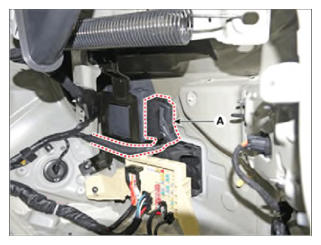

Disconnect the ECS control unit connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

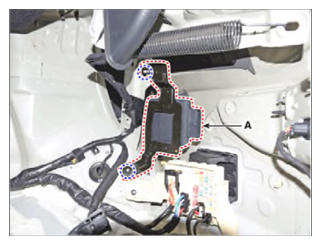

Loosen the ECS control unit bracket nut and then remove the ECS control unit (A).
Tightening torque:

3.6 - 4.0 N.m (0.37 - 0.41 kgf.m, 2.7 - 3.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

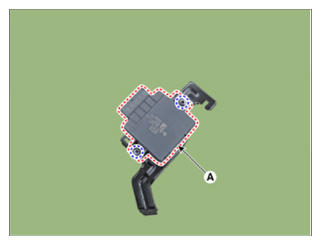

Loosen the nut and then remove the ECS control unit (A) from the bracket.
Tightening torque:

7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
