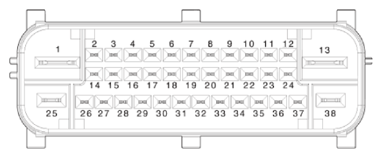

Terminal Function
| Pin No | Description |
|---|---|
| 1 | B + |
| 2 | Solenoid valve RL + |
| 3 | Solenoid valve RR + |
| 4 | Solenoid valve FL + |
| 5 | Solenoid valve FR + |
| 13 | Ground |
| 14 | Solenoid valve RL - |
| 15 | Solenoid valve RR - |
| 16 | Solenoid valve FL - |
| 17 | Solenoid valve FR - |
| 25 | Sensor power |
| 26 | Body G sensor rear signal |
| 27 | Body G sensor FL signal |
| 28 | Body G sensor FR signal |
| 29 | Wheel G sensor FL signal |
| 30 | Wheel G sensor FR signal |
| 31 | CAN HIGH |
| 33 | CAN LOW |
| 36 | IGN1 |
| 38 | G sensor ground |
