Engine Control Relay/Power Control Block (PCB)

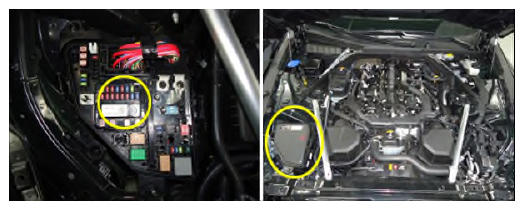

G15569526Courtesy of HYUNDAI MOTOR AMERICA

The engine Electronic Control Unit (ECU) measures and compares voltage from the Ignition Switch and Engine Control Relay. The ECU can confirm that the Engine Control Relay turned ON when it is commanded ON, or turns OFF when it is commanded OFF.
