Engine Control System Diagnosis - 3.5L (3 Of 9)
>>
DTC P0140-00: O2 Sensor Circuit No Activity Detected (Bank 1/Sensor 2)
>>
Troubleshooting
>>

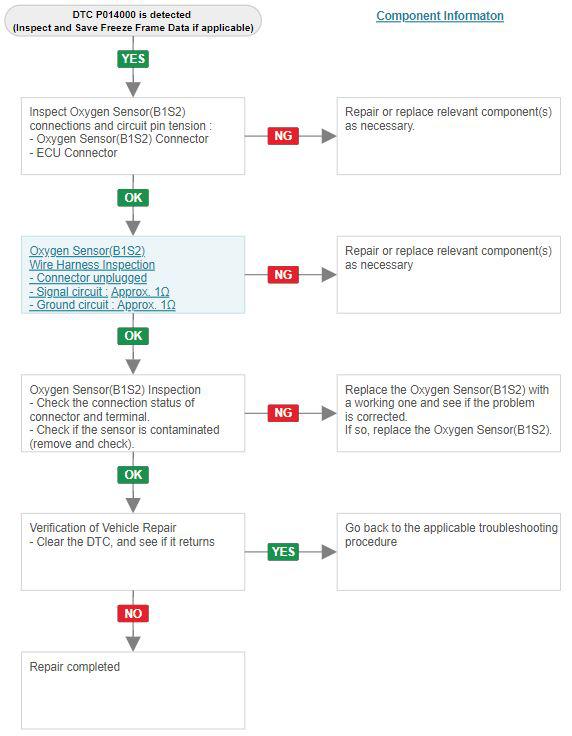

Diagnostic Flow-chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
