Engine Control System Diagnosis - 3.5L (3 Of 9)
>>
DTC P0156-00: O2 Sensor Circuit (Bank 2/Sensor 2)
>>
Troubleshooting
>>

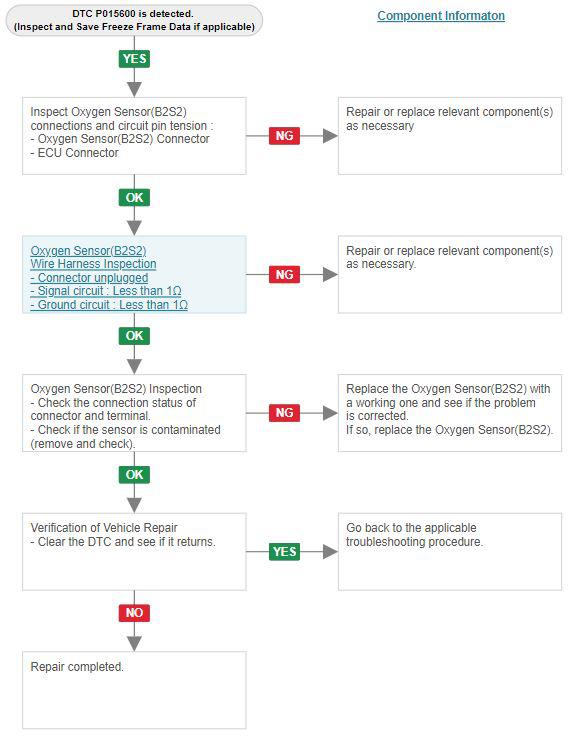

Diagnostic Flow-chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
