Rear Door Module (RRDM/RLDM)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

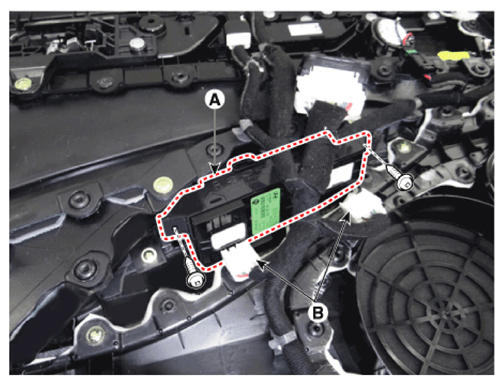

  3. Remove the RDM (A) after loosening the mounting screws and disconnecting the connector (B).
G14236196Courtesy of HYUNDAI MOTOR AMERICA
