Front View Camera Variant Coding

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Front view camera variant coding makes it possible to operate functions for each vehicle type. If the variant coding differs from the vehicle specification, the "variant coding error" DTC is displayed.

Procedure for coding variants

You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.
Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

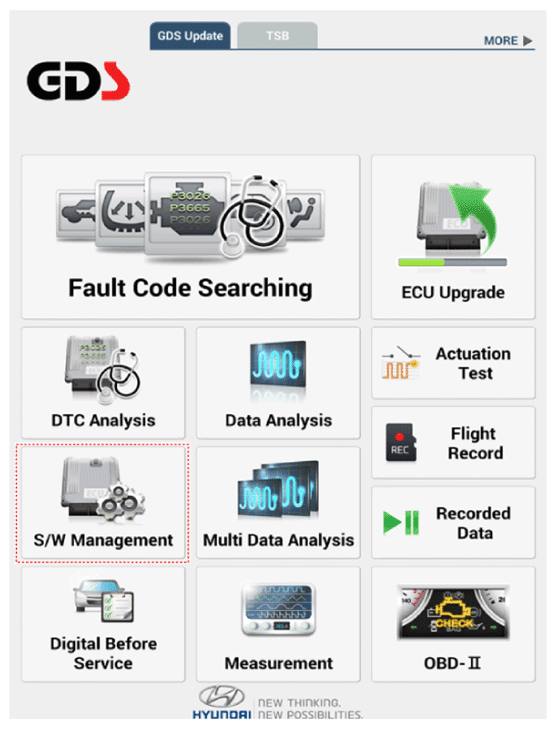

Select the 'S/W Management' and 'Car model'.

Courtesy of HYUNDAI MOTOR AMERICA

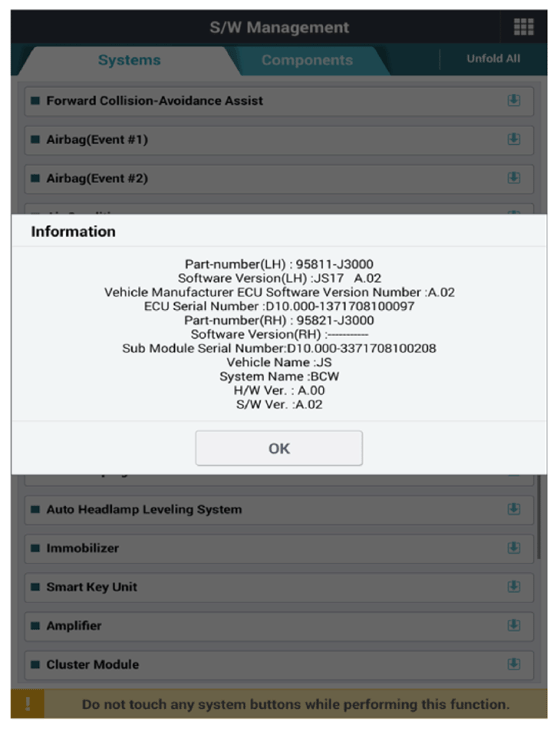

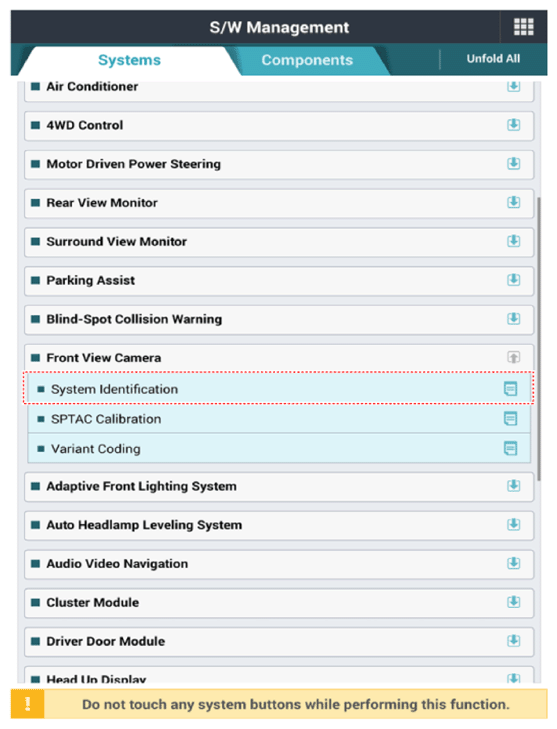

Select "System Identification".

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

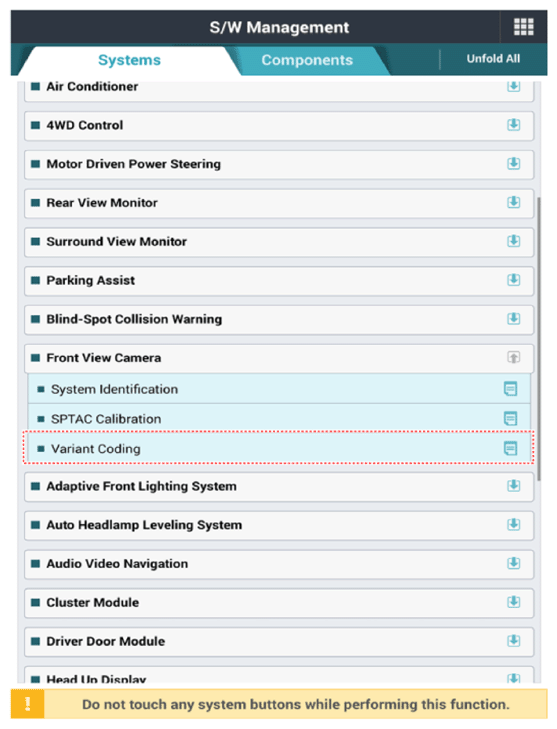

Select "Variant Coding".

Courtesy of HYUNDAI MOTOR AMERICA

Enter the value of the specification read in procedure (4) in the new front view camera.
