Front Alignment: Camber

Camber refers to the tilt of the center of the wheel.



Camber angle

Sedan: -0.67°±0.5°

Limousine: -0.46°±0.5°

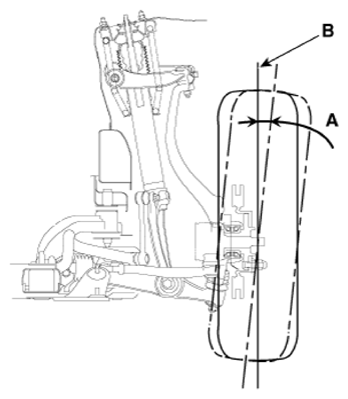

Item Description
A Positive camber angle
B True vertical
G14210021Courtesy of HYUNDAI MOTOR AMERICA
