Repair Procedures: Installation
- Install in the reverse order of removal.
- Tighten the HECU mounting bolts and nuts to the specified torque.
- After installation, bleed the brake system.
(Refer to ESP System Bleeding )
- Connect the GDS to the data link connector located underneath the dash panel.

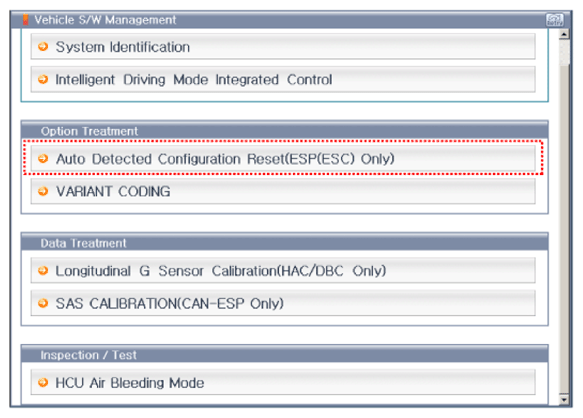

- Make a selection and operate the process according to the instructions on the GDS screen.

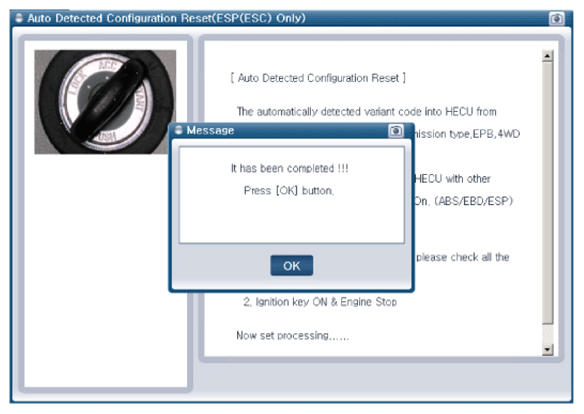

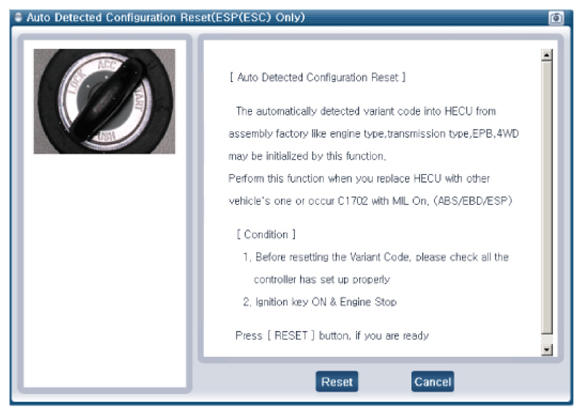

[Auto Detected Configuration Reset]
