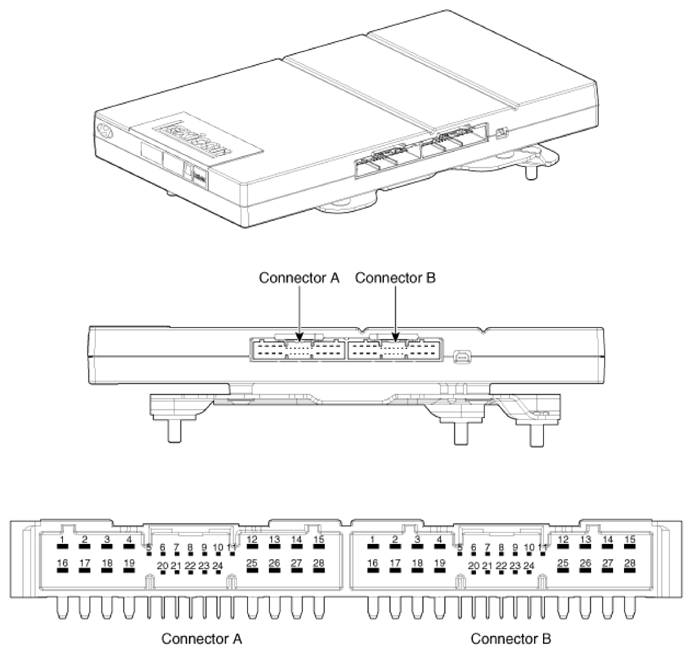

Components And Components Location: Components
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
| Type A | Type B | ||||
|---|---|---|---|---|---|
| No | Connector A | Connector B | No | Connector A | Connector B |
| 1 | Battery (+) | Front center speaker (+) | 1 | Battery (+) | Front center speaker (+) |
| 2 | Battery (+) | Subwoofer speaker (+) | 2 | Battery (+) | Subwoofer speaker (+) |
| 3 | Battery (+) | Front right door speaker (+) | 3 | Battery (+) | Front right door speaker (+) |
| 4 | Battery (+) | Front left door speaker (+) | 4 | Battery (+) | Front left door speaker (+) |
| 5 | - | - | 5 | - | - |
| 6 | MM-CAN (High) | - | 6 | MM-CAN (High) | - |
| 7 | MM-CAN (Low) | - | 7 | MM-CAN (Low) | - |
| 8 | ACC | - | 8 | ACC | - |
| 9 | Navigation voice (+) | - | 9 | Navigation voice (+) | - |
| 10 | - | - | 10 | - | - |
| 11 | - | - | 11 | - | - |
| 12 | - | Rear right door tweeter speaker (+) | 12 | Rear right mid Tweeter speaker (+) | Rear right door speaker (+) |
| 13 | - | Rear left door tweeter speaker (+) | 13 | Rear left mid Tweeter speaker (+) | Rear left door speaker (+) |
| 14 | Front right mid tweeter speaker (+) | Right surround speaker (+) | 14 | Front right mid tweeter speaker (+) | Surround right speaker (+) |
| 15 | Front left mid tweeter speaker (+) | Left surround speaker (+) | 15 | Front left mid tweeter speaker (+) | Surround left speaker (+) |
| 16 | Ground | Front center speaker (-) | 16 | Ground | Front center speaker (-) |
| 17 | Ground | Subwoofer speaker (-) | 17 | Ground | Subwoofer speaker (-) |
| 18 | Ground | Front right door speaker (-) | 18 | Ground | Front right door speaker (-) |
| 19 | Ground | Front left door speaker (-) | 19 | Ground | Front left door speaker (-) |
| 20 | SPDIF (High) | - | 20 | SPDIF (High) | - |
| 21 | SPDIF (Low) | - | 21 | SPDIF (Low) | - |
| 22 | SPDIF (Ground) | - | 22 | SPDIF (Ground) | - |
| 23 | Navigation voice (-) | - | 23 | Navigation voice (+) | - |
| 24 | Ignition 1 | - | 24 | Ignition 1 | - |
| 25 | - | Rear right door tweeter speaker (-) | 25 | Rear right mid tweeter speaker (-) | Rear right door tweeter speaker (-) |
| 26 | - | Rear left door tweeter speaker (-) | 26 | Rear left mid tweeter speaker (-) | Rear left door tweeter speaker (-) |
| 27 | Front right mid tweeter speaker (-) | Right surround speaker (-) | 27 | Front right mid tweeter speaker (-) | Right surround speaker (-) |
| 28 | Front left mid tweeter speaker (-) | Left surround speaker (-) | 28 | Front left mid tweeter speaker (-) | Left surround speaker (-) |
