Trunk Antenna

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal
  2. Remove the trunk transverse trim.

    (Refer to Body - "TRUNK TRIM ")

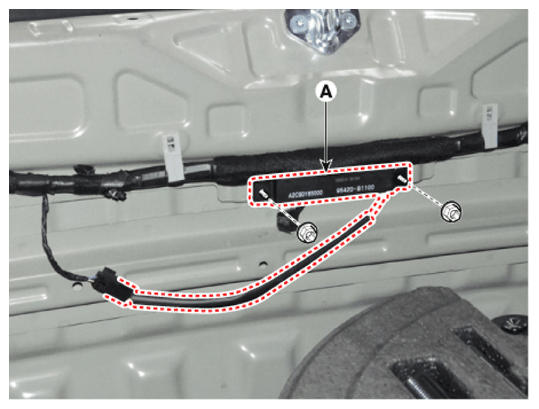

  3. Remove the trunk antenna (A) after disconnecting the connector and loosening the nuts.
G14235877Courtesy of HYUNDAI MOTOR AMERICA
