Circuit Diagram

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

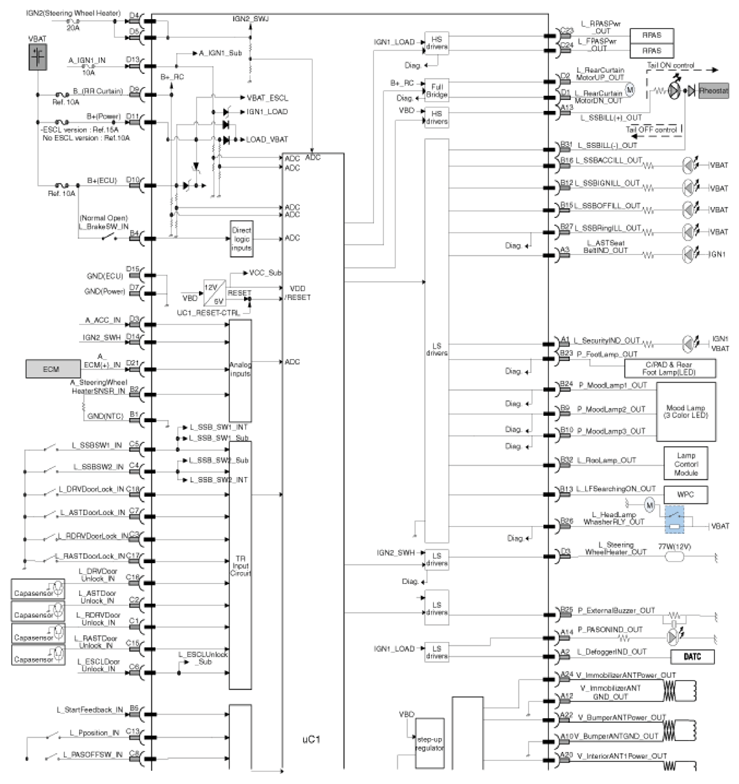

G14235867Courtesy of HYUNDAI MOTOR AMERICA

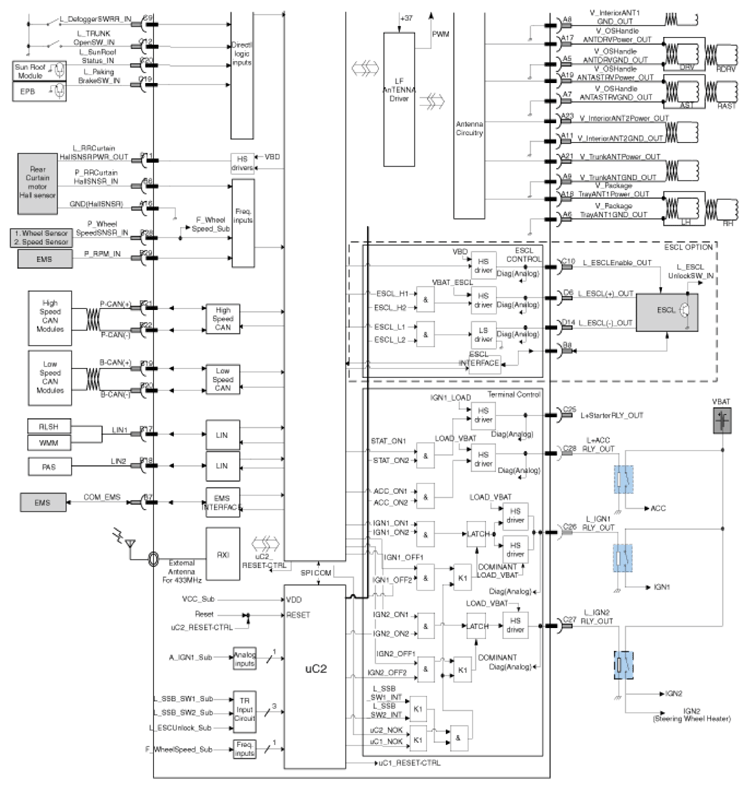

G14235868Courtesy of HYUNDAI MOTOR AMERICA
