Repair Procedures: Installation
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Set the front tires straight-ahead.
- Turn the ignition switch OFF.
- Disconnect the battery negative cable from the battery and wait for at least three minutes before beginning the work.
- Connect the clock spring harness connector and horn harness connector to the clock spring.
- Factory setting for the clock spring is neutral.
- If white cable is visible through the product's 10 O' Clock Neutral Check Window, then the spring is at neutral.
- If white cable is not visible through the product's 10 O' Clock Neutral Check Window, then manually adjust the setting to neutral.

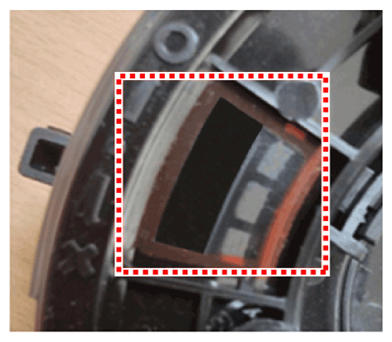

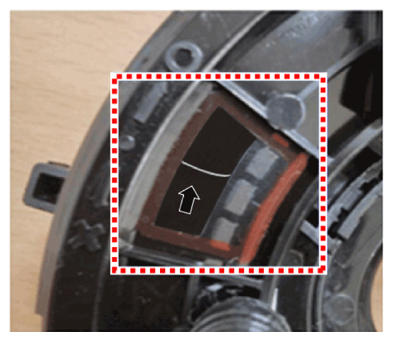

Neutral Check Window: Normal Neutral Check Window: Fault White cable is visible through 10 O' Clock Neutral Check Window White cable is not visible through 10 O' Clock Neutral Check Window - Clock spring manual neutral setting procedure.

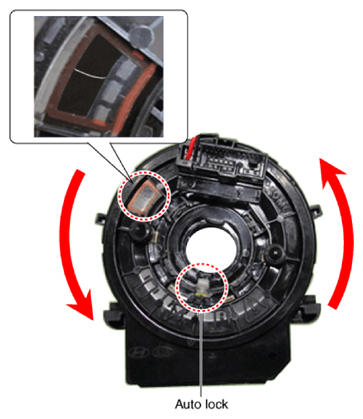

- Press the Auto Lock at 6 O' Clock and turn clockwise 3 rotations.
- Press the Auto Lock at 6 O' Clock and turn counter-clockwise 3 rotations.
- If white cable is visible through the 10 O' Clock Neutral Check Window, then the spring is set to neutral.
- Press the Auto Lock at 6 O' Clock and turn clockwise 3 rotations.
- Install the steering wheel column shroud and the steering wheel.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
- Connect the Driver Airbag (DAB) module connector and horn connector, and then install the Driver Airbag (DAB) module on the steering wheel.NOTE:

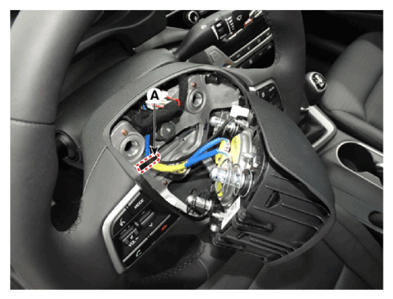

- When install the Driver Airbag (DAB) module, Fix the horn wire and DAB inflator wire tightly with wire clip (A).
- Connect the battery negative cable.
- After installing the airbag, confirm proper system operation:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
- Make sure horn button works.
