Repair Procedures: Removal
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable and wait for at least three minutes before beginning work.

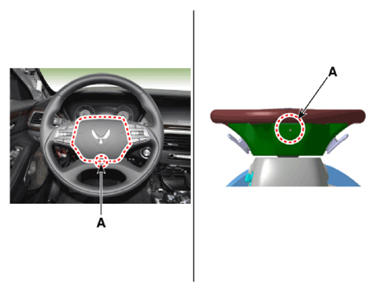

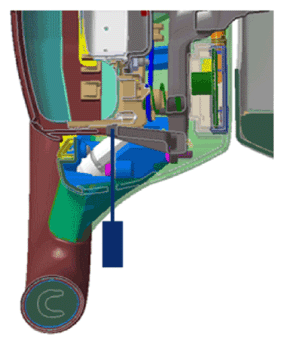

- Put a flat tool (Ø4 mm) into a guide hole located in the bottom of steering wheel and press the spring.WARNING:
- When putting the tool into the hole, make sure not to damage the airbag cushion with the tool.

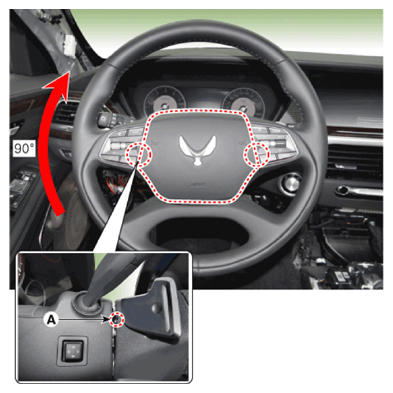

- Turn the steering wheel anti-clockwise, to make a guide hole (A) as shown on the right side.

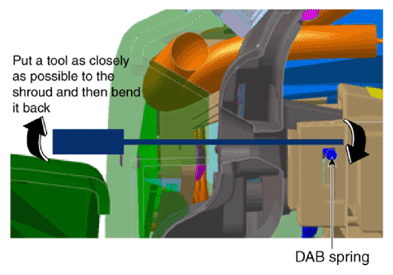

Put a tool into the hole (B) and bend back fixed DAB spring.
Make sure to pull DAB cover when you bend back the spring.
NOTE:- Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.

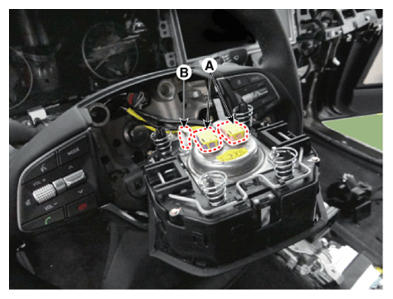

- Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).
- Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
- Remove the shroud lower panel and shroud upper panel.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")

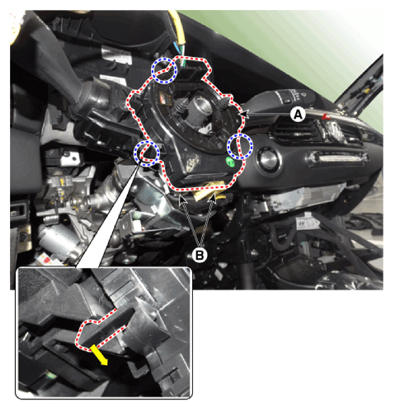

- Remove the clock spring (A) after disconnecting the clock spring connectors (B).
