Component Location

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

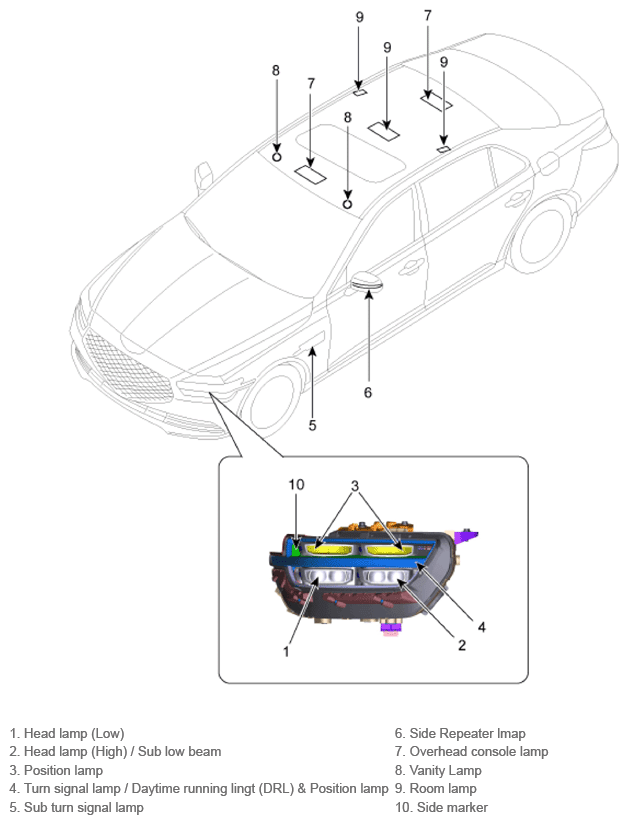

G14236314Courtesy of HYUNDAI MOTOR AMERICA

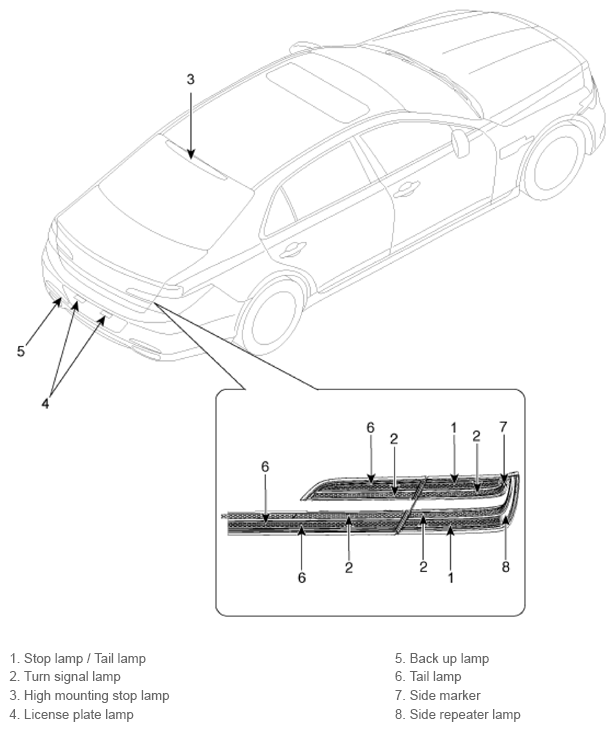

G14236315Courtesy of HYUNDAI MOTOR AMERICA
