LED Driver Module
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the head lamp assembly.

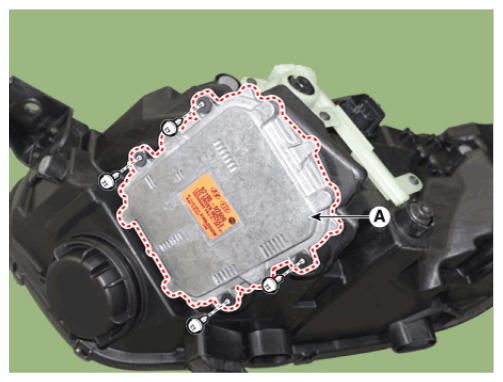

- LED driver module (A) from the head lamp after loosening the mounting screws.
 Courtesy of HYUNDAI MOTOR AMERICA
|

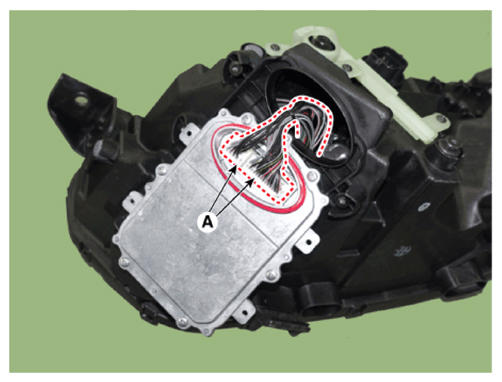

- Remove the LED driver module (A) after disconnecting the ballast connector.
 Courtesy of HYUNDAI MOTOR AMERICA
|
