Integrated Body Control Unit
WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the lower crash pad panel [RH].
(Refer to Body - "LOWER CRASH PAD PANEL [RH] ")

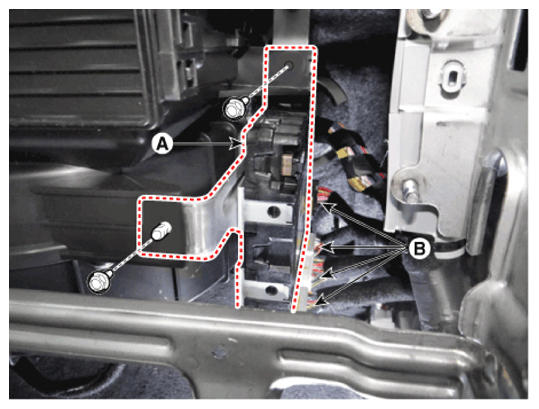

- Remove the IBU (A) after disconnecting the connectors (B) and loosening the bolts.
