Trunk Open Switch

WARNING: This page is about a different car, the 2022 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk back panel.

    (Refer to Body - "TRUNK BACK PANEL ")

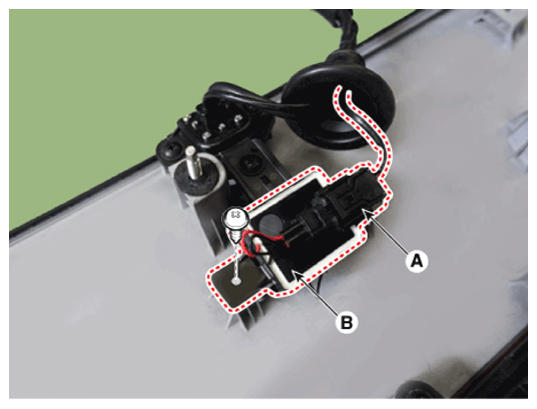

  3. Remove the trunk open switch (B) after loosening the mounting screws and disconnecting the connector (A).
G14235885Courtesy of HYUNDAI MOTOR AMERICA
