Repair Procedures: Removal

  1. Disconnct the negative (-) battery terminal.

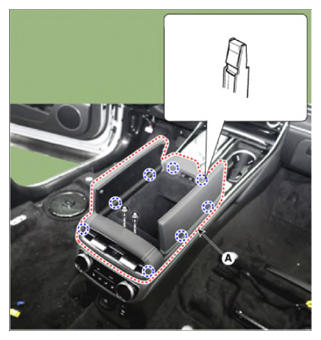

  2. Remove the upper console assembly (A) after loosening mounting bolts.
    G14723760Courtesy of HYUNDAI MOTOR AMERICA

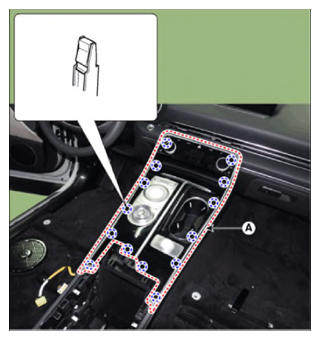

  3. Using a remover, remove the console upper cover (A).
    G14723761Courtesy of HYUNDAI MOTOR AMERICA

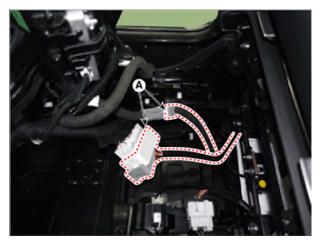

  4. Disconnect the console upper cover connector (A).
    G14723762Courtesy of HYUNDAI MOTOR AMERICA

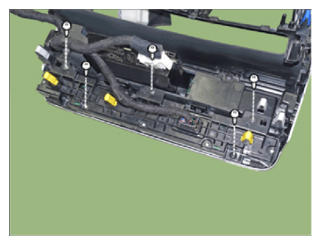

  5. Disconnect the keyboard connector and then remove the AVN keyboard assembly after loosening mounting screws.
    G14723763Courtesy of HYUNDAI MOTOR AMERICA
