Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the front seat shield outer cover.

    (Refer to Front Seat - "FRONT SEAT OUTER SHIELD COVER ")

  3. Remove the front seat shield inner cover.

    (Refer to Front Seat - "FRONT SEAT INNER SHIELD COVER ")

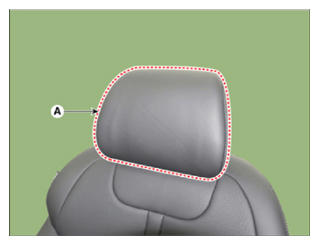

  4. Push the lock pin, remove the front seat headrest (A).
    G14723576Courtesy of HYUNDAI MOTOR AMERICA

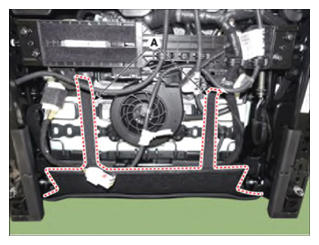

  5. Remove the front seat lower protector (A).
    G14723577Courtesy of HYUNDAI MOTOR AMERICA

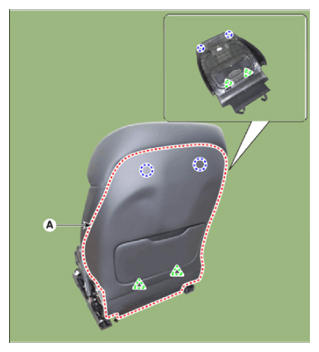

  6. Remove the front seat back board (A).
    NOTE:
    • Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
    • Be careful not to damage the fixing clips.
    G14723578Courtesy of HYUNDAI MOTOR AMERICA

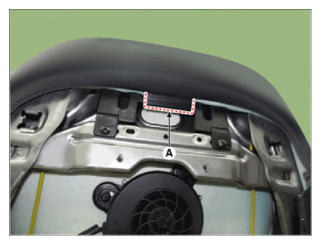

  7. Remove the front seat upper protector (A).
    G14723579Courtesy of HYUNDAI MOTOR AMERICA

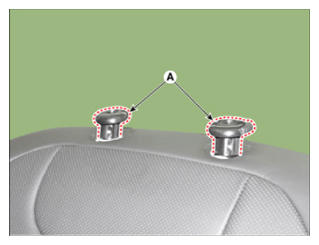

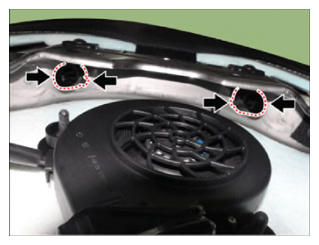

  8. Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides, and remove them.
    G14723580Courtesy of HYUNDAI MOTOR AMERICA
    G14723581Courtesy of HYUNDAI MOTOR AMERICA

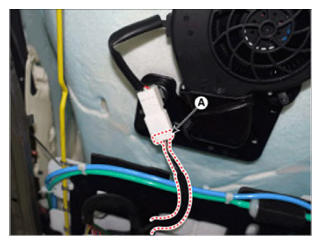

  9. Separate the connector (A).
    G14723582Courtesy of HYUNDAI MOTOR AMERICA

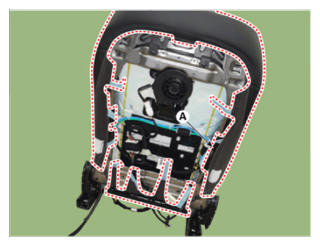

  10. Remove the protector (A) from the front seat back frame.
    G14723583Courtesy of HYUNDAI MOTOR AMERICA

    Information

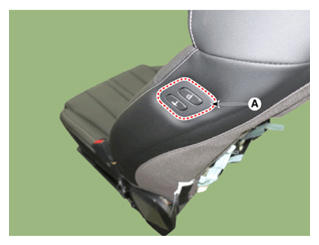

    • In case of the passenger seat, remove the walk-in with (A) and then remove the seat back cover.
      G14723584Courtesy of HYUNDAI MOTOR AMERICA

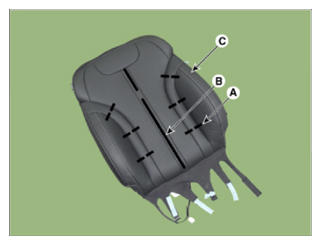

  11. Remove the Velcro tape (A) and hog-ring clips (B) inside the front seat back cover and remove the seat back cover (C).
    G14723585Courtesy of HYUNDAI MOTOR AMERICA
  12. To install, reverse removal procedure.

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips (or pin-type retainers).
    • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
      G14723586Courtesy of HYUNDAI MOTOR AMERICA
