Repair Procedures: Replacement

Remove the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")

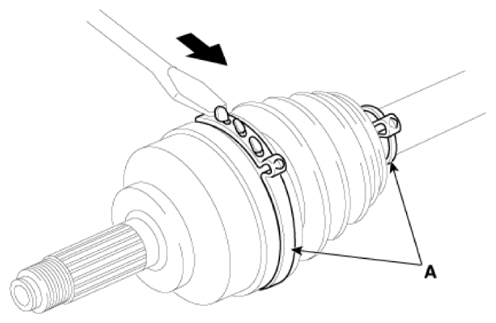

Remove the BJ boot band (A) by using the driver (-).

Courtesy of HYUNDAI MOTOR AMERICA
Using the SST, secure the boot bands.

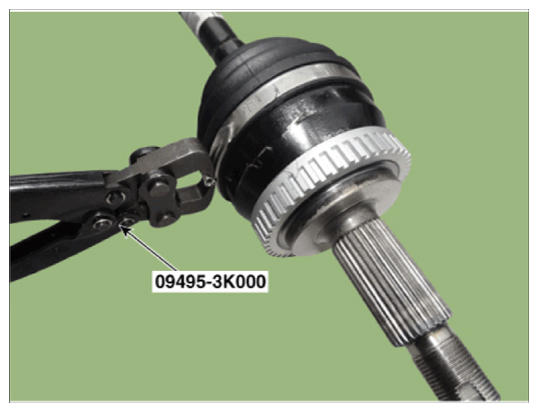

[Ear type]

Courtesy of HYUNDAI MOTOR AMERICA

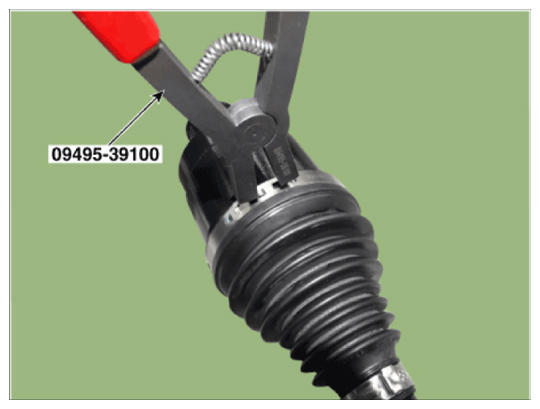

[Hook type]

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- The boot band should be replaced with a new one.
- Do not disassemble the BJ assembly.
Install in the reverse order of removal.
Check the front alignment.
(Refer to Suspension System - "ALIGNMENT ")
