Repair Procedures: Installation

  1. Install the dynamic damper.

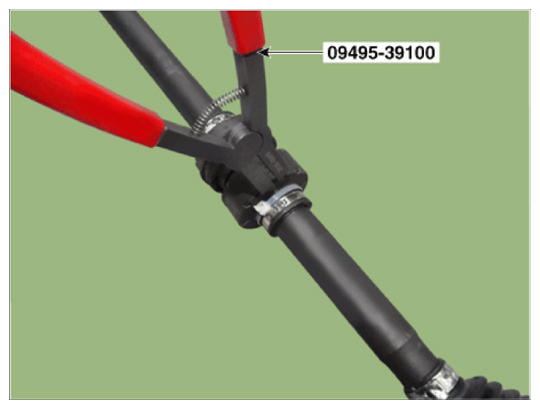

  2. Using the SST (09495-39100), secure the dynamic damper bands.
    G14721977Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the boot band.
  3. Install the TJ joint assembly.

    (Refer to Driveshaft Assembly - "INSTALLATION ")

  4. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "INSTALLATION ")

  5. Check the alignment.

    (Refer to Suspension System - "ALIGNMENT - Front Alignment")
