Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing.
(Refer to Body - "GLOVE BOX ")

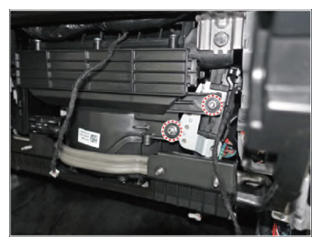

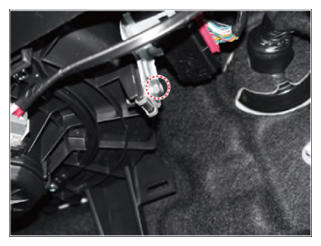

- Loosen the IBU mounting nuts and bolt.

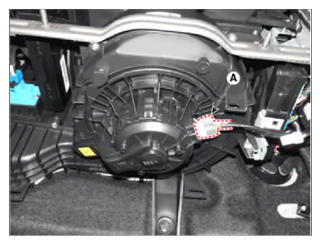

- Disconnect the blower motor connector (A).

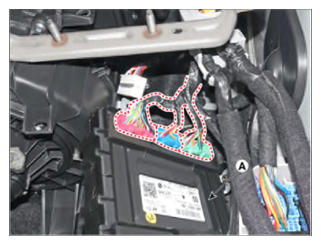

- Disconnect the IBU connectors and remove the IBU unit (A).
