Clock Spring

  1. If any improper parts are found during inspection, replace the clock spring with a new one.
  2. Check connectors and protective tube for damage, and terminals for deformities.

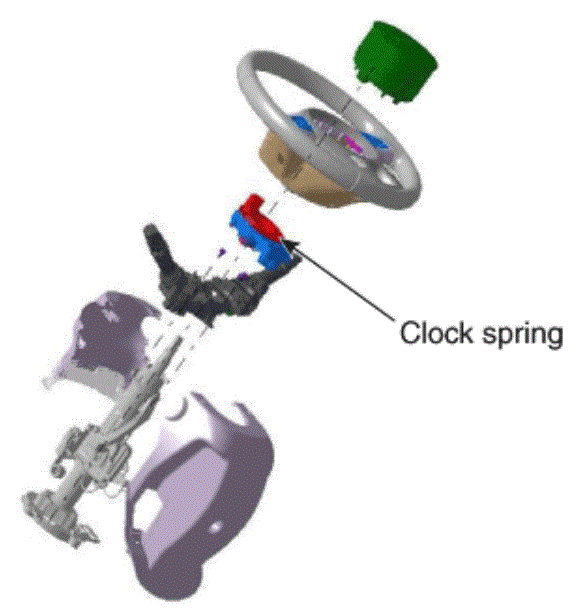

G14722821Courtesy of HYUNDAI MOTOR AMERICA

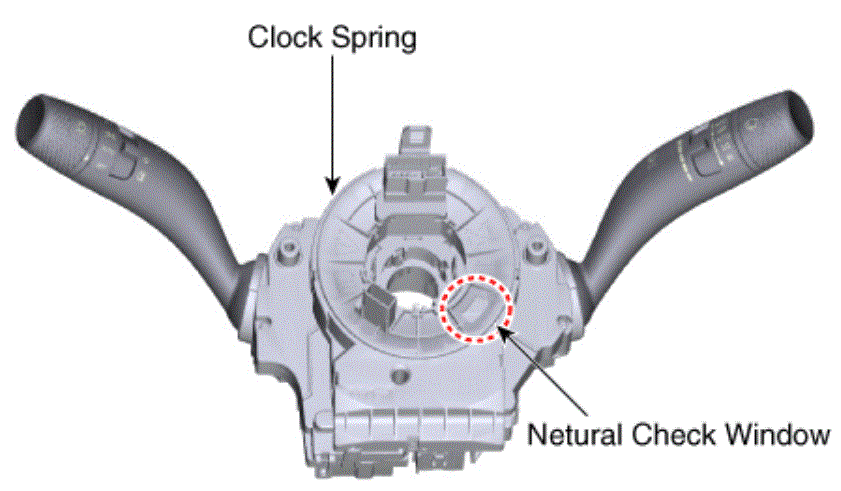

G14722822Courtesy of HYUNDAI MOTOR AMERICA
