Repair Procedures: Removal

  1. Set the front tires straight-ahead.
    CAUTION:
    • If the steering wheel is not aligned to the center position, it may cause the disconnection and/or bending of the internal cable by improper steering wheel rotation.
  2. Disconnect the negative (-) battery terminal.
    WARNING:
    • Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

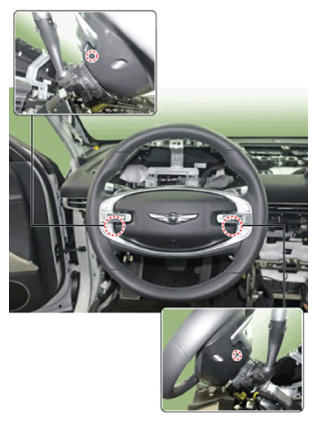

  3. Put a flat tool (Ø5 mm) into a guide hole located in the left/right of steering wheel and press a DAB fastening pin.
    G14722823Courtesy of HYUNDAI MOTOR AMERICA

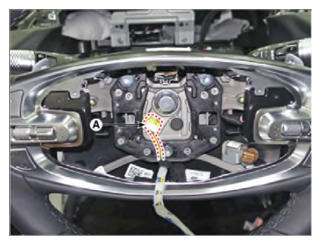

  4. Press the lock pin, separate the DAB connector (A) and then remove the DAB module.
    G14722824Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the steering wheel.

    (Refer to Steering System - Steering Wheel - "REPAIR PROCEDURES ")

  6. Remove the steering wheel column shroud panel.

    (Refer to Body (Interior and Exterior) - "STEERING WHEEL COLUMN SHROUD PANEL ")

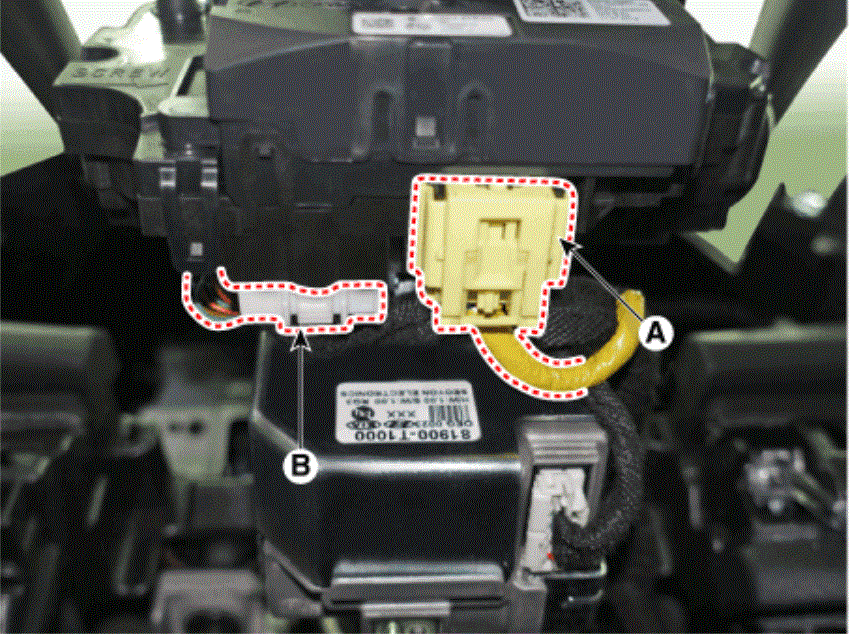

  7. Separate the clock spring connector (A) and horn connector (B).
    G14722825Courtesy of HYUNDAI MOTOR AMERICA

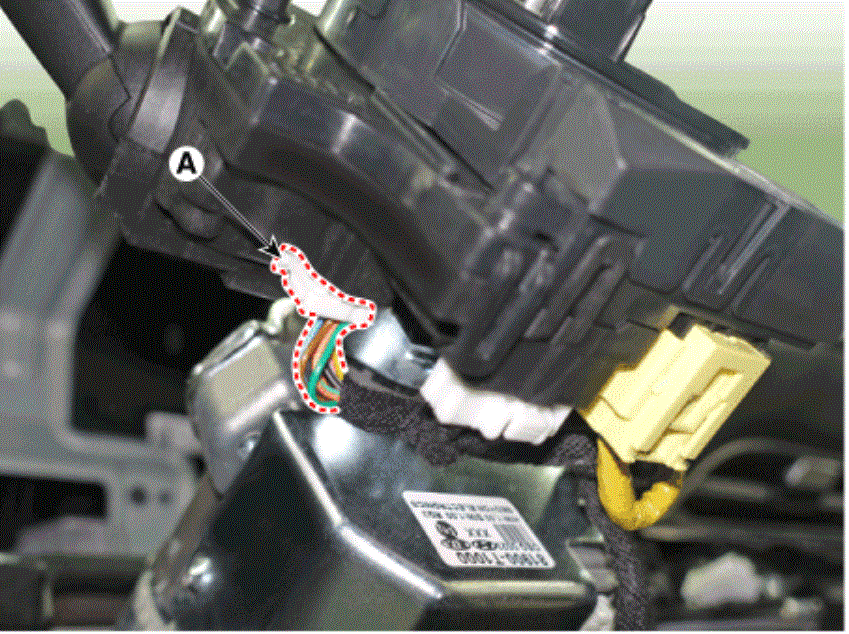

  8. Separate the multifunction switch connector (A).
    G14722826Courtesy of HYUNDAI MOTOR AMERICA

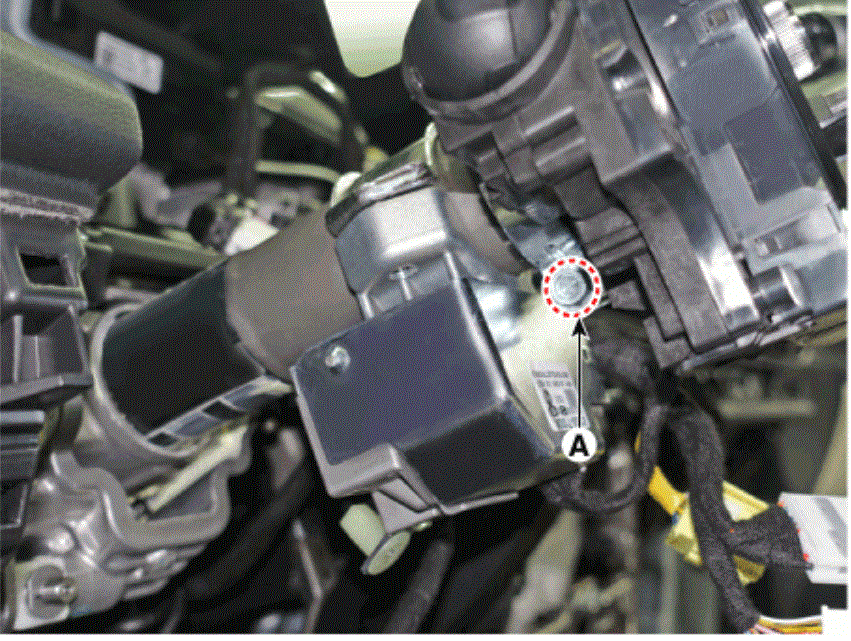

  9. Loosen the clamp mounting bolt (A) and then remove the multifunction switch & clock spring assembly.
    G14722827Courtesy of HYUNDAI MOTOR AMERICA
