Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the front bumper.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

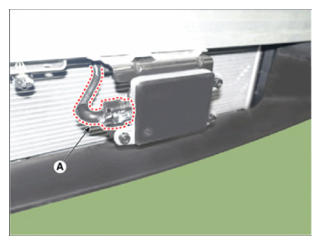

- Disconnect the front radar connector (A).

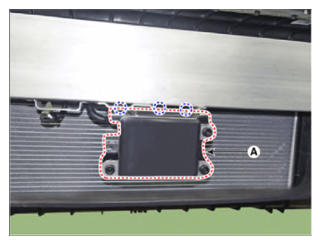

- Loosen the mounting nuts and remove the front radar (A).
Front radar nuts:
9.5 - 10.5 N.m (0.97 - 1.07 kgf.m, 7.0 - 7.7 lb.ft)
