Engine Control System Diagnosis - 3.5L (3 Of 9)
>>
DTC P013D-00: O2 Sensor Slow Response - Lean To Rich Bank 2 Sensor 2
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

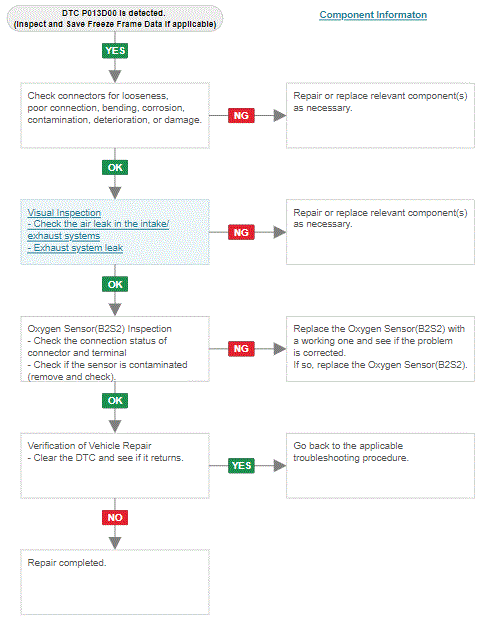

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
