Genesis
>>
2021
>>
GV80 3.5T Advanced+
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 3.5L (9 Of 9)
>>
DTC U01B0-00: Lost Communication With Battery Monitor Module
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

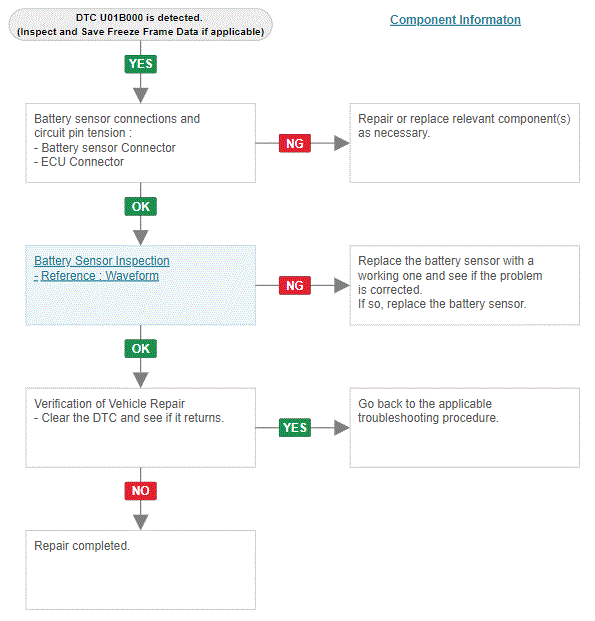

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
