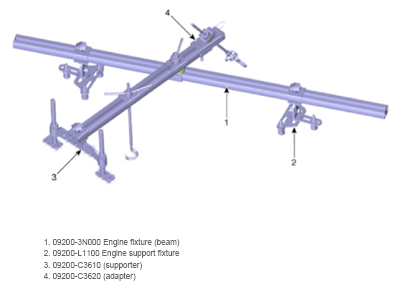

Engine Support Fixture Assembly Drawing

Courtesy of HYUNDAI MOTOR AMERICA

Information

• When using the adapter (09200-C3620), check the specified angle for each engine type.

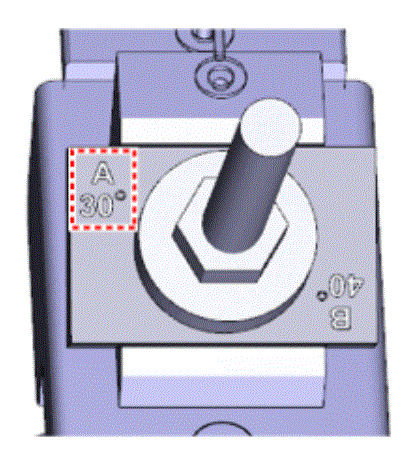

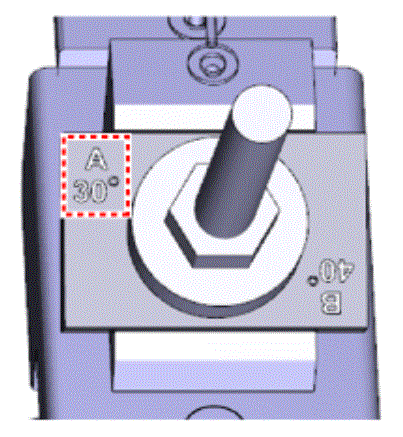

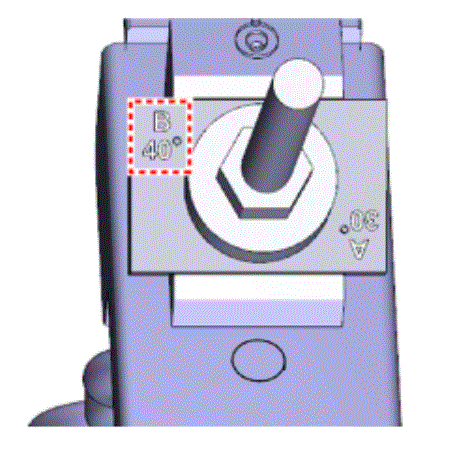

Gasoline 2.5 FR T-GDI (A: 30°)	Gasoline 3.5 FR T-GDI (B: 40°)	Diesel (I6) 3.0 VGT (A: 30°)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
