Special Service Tools: Notes
| Tool Name/Number | Illustration | Description |
|---|---|---|

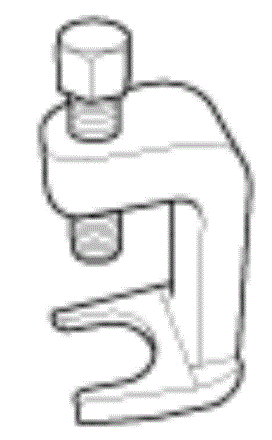

| 09568-2J100 Ball joint puller |
Removal of the front lower arm, tie rod end | |

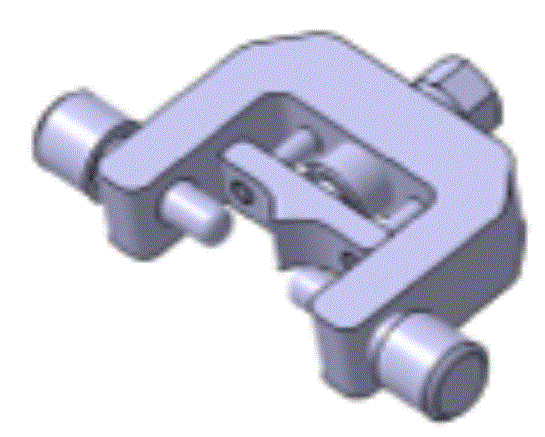

| 09568-4R100 Front upper arm ball joint remover |
Removal of the front upper arm ball joint. | |

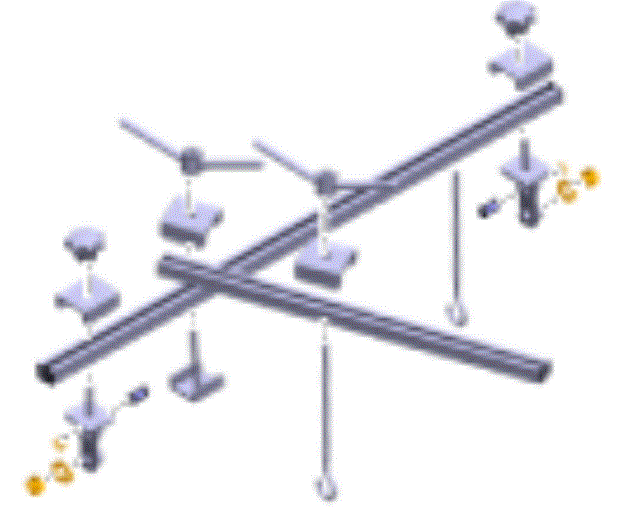

| 09200-3N000 Engine support fixture (beam) |
Removal and installation of the front cross member. Used with the supporter (SST No.: 09200-L1100), adapter (SST No.: 09200-C3610), supporter (SST No.: 09200-C3620) |
|

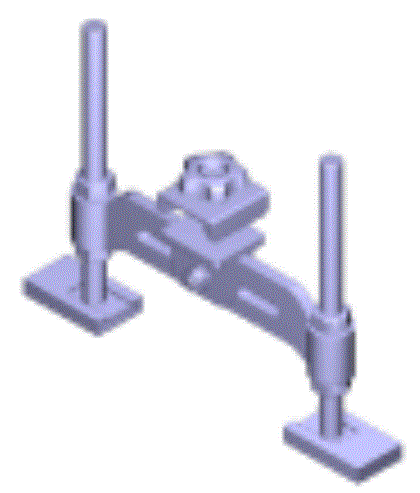

| 09200-L1100 Engine support fixture (supporter) |
Removal and installation of the front cross member. Used with the beam (09200-3N000) |
|

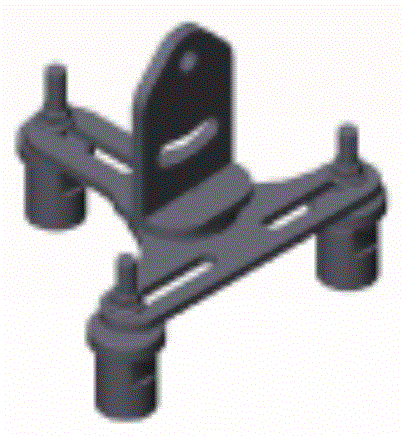

| 09200-C3620 Engine support fixture (adapter) |
Removal and installation of the front cross member. Used with the beam (09200-3N000) |
|

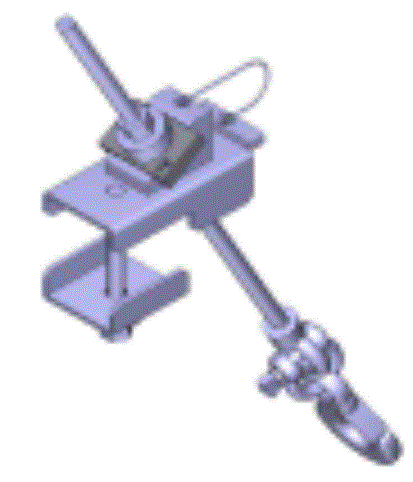

| 09200-C3610 Engine support fixture (supporter) |
Removal and installation of the front cross member. Used with the beam (09200-3N000) |
