Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
CAUTION:
- Wait at least 30 seconds after separating the cable.
Remove the luggage side trim.
(Refer to Body (Interior and Exterior) - "LUGGAGE SIDE TRIM ")

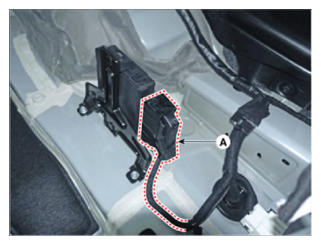

Disconnect the ECS control unit connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

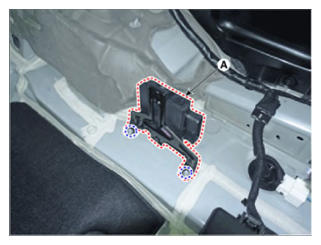

Loosen the ECS control unit bracket nut and then remove the ECS control unit (A).
Tightening torque:

3.6 - 4.0 N.m (0.37 - 0.41 kgf.m, 2.7 - 3.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

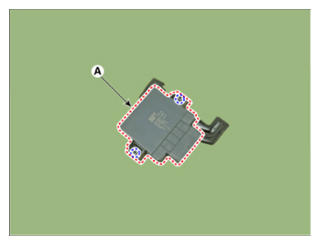

Loosen the nut and then remove the ECS control unit (A) from the bracket.
Tightening torque:

7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

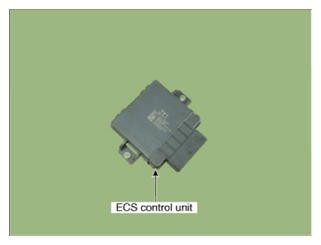

Courtesy of HYUNDAI MOTOR AMERICA
