Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Loosen the wheel bolts slightly.
Raise the vehicle, and make sure it is securely supported.

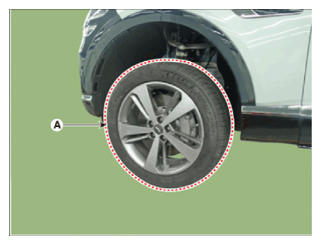

Remove the front wheel and tire (A) from front hub.

Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

NOTE:

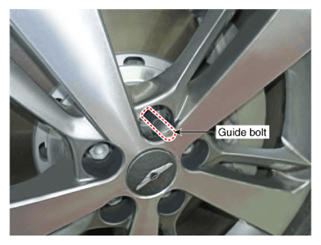

Safely remove the wheel and tire (A) using the guide bolt included in the Tire Mobility Kit (TMK).

Courtesy of HYUNDAI MOTOR AMERICA

Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of HYUNDAI MOTOR AMERICA

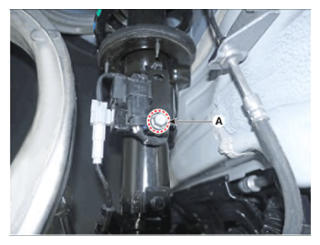

Loosen the G-sensor bracket mounting bolt (A).
Tightening torque:

10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8.0 - 10.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the front wheel G-sensor bracket bolt (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

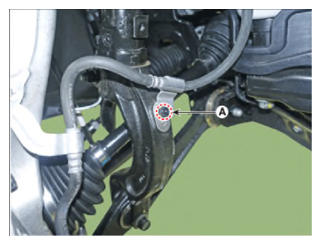

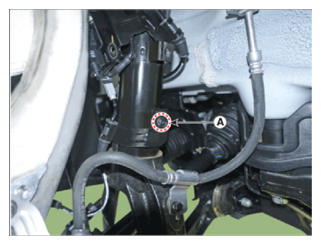

Loosen the brake hose bracket mounting bolt (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

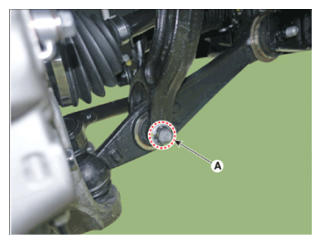

Loosen the fork bracket mounting bolt (A).
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)
NOTE:
- Do not reuse the bolt and nut.
Courtesy of HYUNDAI MOTOR AMERICA

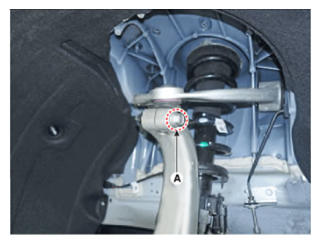

Loosen the upper arm ball joint mounting bolt (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

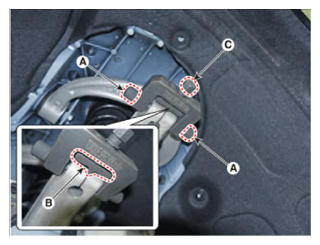

Remove the front upper arm from the front axle by using the SST (09456-4R100).
1. Install the support bolts (A) to the front upper arm mounting bolt holes.
2. Install the support body (B) to the front axle.
3. Widen the gap of front axle by tightening the bolt (C).
Courtesy of HYUNDAI MOTOR AMERICA

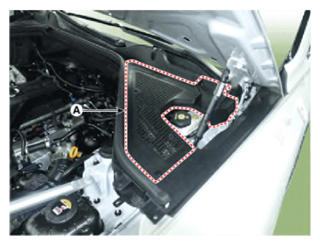

Remove the engine side cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

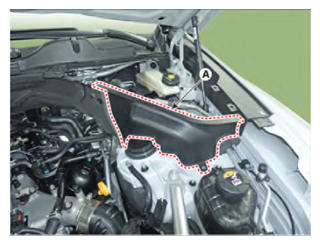

Remove the LH side cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

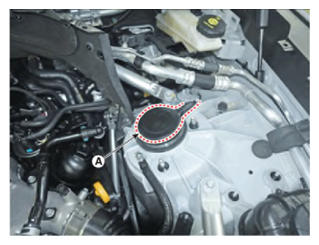

Remove the service cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

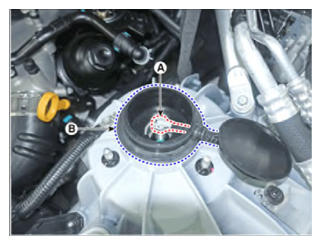

Disconnect the continuously variable damping control connector (A) and then remove the cap (B).

Courtesy of HYUNDAI MOTOR AMERICA

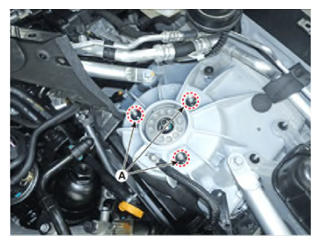

Loosen front strut upper mounting nut (A) and then remove the front strut assembly.
Tightening torque:

53.9 - 73.5 N.m (5.5 - 7.5 kgf.m, 39.8 - 54.2 lb-ft)
NOTE:
- When tightening the front strut upper mounting nuts, tighten them in empty vehicle state.
- Do not reuse the mounting nut.
Courtesy of HYUNDAI MOTOR AMERICA
